32W Marine-Grade Solar Power Kit | Solar Panel Kits for Boats

32W Inpro-Solar Boat Kit

Click for larger image of 32W Inpro-Solar Boat Kit

Buy 32W Inpro-Solar Boat Kit

Code:

05003IP04

Buy:

£379.99

Delivery (UK):

£6.50

Need help with this table?

Inpro-Solar Boat Kit
Name	Code	Power (W)	Voltage (V)	Current (A)	Price	UK Del'y
11W Inpro-Solar Boat Kit	05003IP01	11.0	16.7	0.7	£229.99	£6.50
15W Inpro-Solar Boat Kit	05003IP02	15.0	16.7	0.9	£259.99	£6.50
22W Inpro-Solar Boat Kit	05003IP03	22.0	16.7	1.3	£299.99	£6.50
32W Inpro-Solar Boat Kit	05003IP04	32.0	16.7	2.0	£379.99	£6.50
64W Inpro-Solar Boat Kit	05003IP05	64.0	16.7	4.0	£679.99	£6.50

View all panels by wattage :: View all kits by wattage :: Click here for dimensions

Inpro-Solar Boat Kit
Name	Code	Power (W)	Voltage (V)	Current (A)	Length (mm)	Width (mm)	Depth (mm)	Weight (kg)	Price	UK Del'y
11W Inpro-Solar Boat Kit	05003IP01	11.0	16.7	0.7	450.0	270.0	4.0	1.1	£229.99	£6.50
15W Inpro-Solar Boat Kit	05003IP02	15.0	16.7	0.9	620.0	250.0	4.0	1.4	£259.99	£6.50
22W Inpro-Solar Boat Kit	05003IP03	22.0	16.7	1.3	430.0	450.0	4.0	1.8	£299.99	£6.50
32W Inpro-Solar Boat Kit	05003IP04	32.0	16.7	2.0	590.0	450.0	4.0	2.6	£379.99	£6.50
64W Inpro-Solar Boat Kit	05003IP05	64.0	16.7	4.0	590.0	900.0	4.0	5.0	£679.99	£6.50

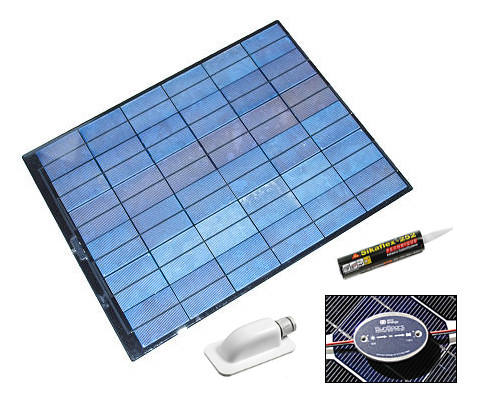

This marine grade solar kit contains a 32W black-backed Inprosolar panel, which can be glued or screwed onto flat surfaces. The kit also includes a Sunport 6 regulator, single port cable gland, fuse and a 310cc tube of adhesive. Once connected, the solar controller in this kit can remain permanently hooked up, even through winter, without draining the batteries, as it uses zero power in the dark.

Solar Panel
The durable solar panel can be screwed or glued onto flat surfaces. Backed with fibreglass, (which makes it lightweight), it is encapsulated within a highly efficient transparent UV resistant polymer. Thin and compact, the panel can even be walked on with soft shoes.
    * 10 year warranty
    * fully encapsulated junction box with 1m cable
    * Dimensions (mm): 590 x 450 x 4; 2.5kg
    * Rating: 2A at 16.7V

Solar Controller
With automatic nighttime shutdown the Sunsport 6 uses absolutely zero power in the dark, which means boaters can leave it connected all winter without draining the batteries.
    * Save up to 10% of the power from a 5 Watt module.
    * Protection (PV & Battery), against short-circuit & reverse polarity, overload, over temperature & battery removal
    * Can charge a completely discharged battery
    * Regulation method: Low frequency On-Off series; Typical set points: Off: 14.1 Volts On: 13.3 Volts
    * Extreme design -40 degrees to +70 degrees C
    * Series design (not shunt)
    * Reliable - 100% solid state
    * No radio interference
    * LED indicates charging
    * Wall mountable; stainless steel mounting screws provided
    * Solid aluminium case, completely sealed in epoxy potting
    * Dimensions: 6.4 x 9.6 x 1.8 cm; 210g
    * Battery consumption zero, 0.0 mA
    * Typical solar consumption 8 mA daylight only, 3 mA without LED
    * 5 year warranty
