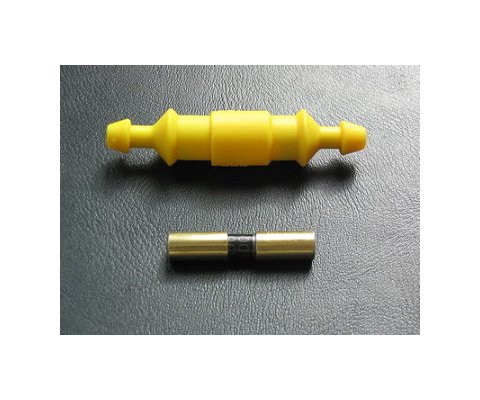

Cool yellow fuse-style diode

Cool yellow fuse-style diode
Click for larger image of Fuse-style diode

Buy Fuse-style diode

Quantity:

Code:
07002EE01
Buy:
£6.00
Delivery (UK):
£4.00


Fantastic new blocking diodes to prevent power from leaking back into the solar panels at night. An easy-to-install, high-efficiency blocking diode made in the shape of a fuse to fit into a standard fuse holder (included). These special low voltage drop schottky diodes can carry up to 5 amps. Perfect for many types of solar modules.

NOTE: The black stripe on the diode needs to be facing the charge controller in the +ve line of cable.

Features

  • Prevents power leaking back into solar modules at night
  • Easy to install with crimp on fuse holder connections
  • Max. Charging current (at 85 degrees C) 5 amps DC
  • Low voltage drop - typically 0.3 volts at 5 amps
  • Max. reverse voltage 40 volts
  • Fuse holder crimp on wire size #16 to #12 AWG
  • Weight: 6.6 grams
  • Size (L x D): 3.175 x 0.635 cm
  • Fuse Holder Size (L x D): 2-3/8 x 0.5 inches
  • Extreme temperature range -40 degrees C to +85 degrees C (-40 degrees F to +185 degrees F)
  • Solid brass ends
  • 5 year warranty
