20W DIY Solar panel kit

Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
---|---|---|---|---|---|---|---|
10W DIY Solar Power kit | 05002SE01 | 10.00 | 350.0 x 285.0 | £110.00 | £6.25 | Buy Now | |
130W DIY Solar panel kit | 05002SE07 | 130.00 | 1470.0 x 680.0 | £500.00 | £15.00 | Buy Now | |
20W DIY Solar panel kit | 05002SE02 | 20.00 | 350.0 x 525.0 | £140.00 | £6.25 | Buy Now | |
30W DIY Solar panel kit | 05002SE03 | 30.00 | 510.0 x 535.0 | £175.00 | £6.25 | Buy Now | |
40W DIY Solar panel kit | 05002SE04 | 40.00 | 660.0 x 540.0 | £200.00 | £6.25 | Buy Now | |
60W DIY Solar panel kit | 05002SE05 | 60.00 | 660.0 x 630.0 | £275.00 | £15.00 | Buy Now | |
90W DIY Solar panel kit | 05002SE06 | 90.00 | 660.0 x 1010.0 | £350.00 | £15.00 | Buy Now |

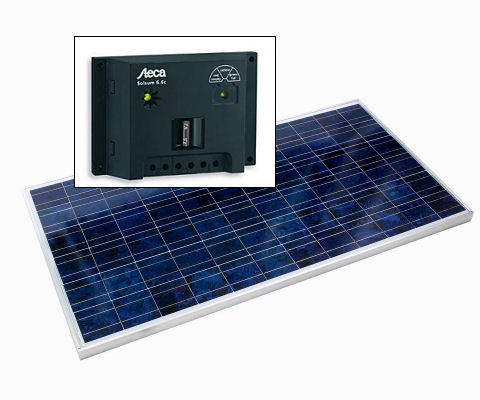

20W Yingli polycrystalline framed solar panel kits for DIY solar power. These 12V charging kits are suitable for permanent installation, and provide solar power for many different professional, domestic and leisure applications, including motorhomes, boats, and outbuildings. Kits include a polycrystalline solar panel, charge controller, cables and battery connectors.
Regulator details:
- 10A EPHC charge controller
- Dimensions (mm): 140 x 88 x 124, Weighs 250g
- 4 charging states, including PWM
- Low voltage disconnect
- Screw terminals for ease of installation.
- Status LED indicates battery charging.
- Reverse leakage protection prevents power loss at night.
Cable details:
-
Approx 750mm two-core UV stable cables fitted to panel
-

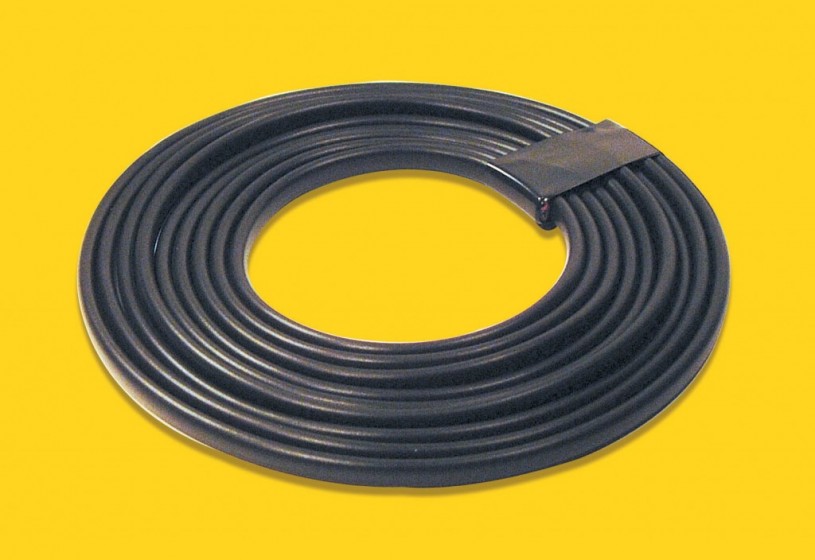

In addition, comes with approx 3m UV stable two-core cable length.
-

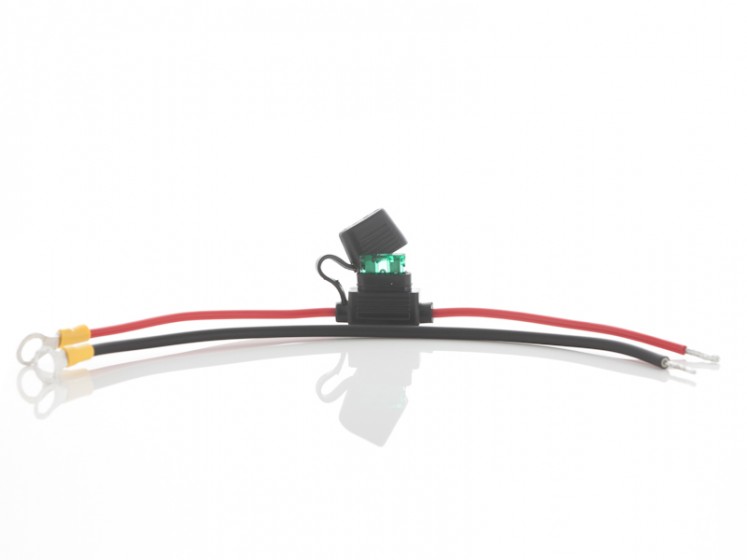

Pack of battery connectors, cable interconnector, fuse and instructions
Solar panel details:
-
Heavy duty anodised aluminium frame provides high wind resistance and convenient mounting access.
-
Installation holes for standard bracket systems are provided.
-
Screwdriver required for installation; full instructions included.
-
Panel rated 20W, 1.14A @ 17.5V
-
Dimensions: 350 x 525 x 25mm, 2.3kg
-
25 year panel output warranty.
