40W DIY Solar panel kit
40W DIY Solar panel kitClick to enlarge product image
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| 10W DIY Solar Power kit | 05002SE01 | 10.00 | 350.0 x 285.0 | £110.00 | £4.20 | Buy Now | |
| 20W DIY Solar panel kit | 05002SE02 | 20.00 | 350.0 x 525.0 | £140.00 | £7.50 | Buy Now | |
| 30W DIY Solar panel kit | 05002SE03 | 30.00 | 745.0 x 350.0 | £175.00 | £7.50 | Buy Now | |
| 40W DIY Solar panel kit | 05002SE04 | 40.00 | 660.0 x 540.0 | £200.00 | £7.50 | Buy Now | |
| 60W DIY Solar panel kit | 05002SE05 | 60.00 | 770.0 x 660.0 | £275.00 | £7.50 | Buy Now | |
| 85W DIY Solar panel kit | 05002SE06 | 85.00 | 660.0 x 1010.0 | £350.00 | £7.50 | Buy Now | |
| 130W DIY Solar panel kit | 05002SE07 | 130.00 | 1470.0 x 680.0 | £500.00 | £7.50 | Buy Now |

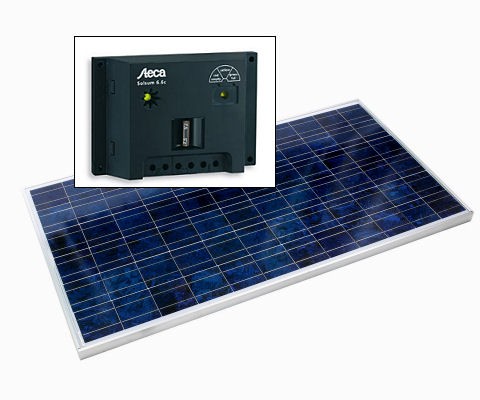

High quality 40W Yingli polycrystalline framed solar panel kit. These 12V charging kits are suitable for permanent installation, and for many different professional, domestic and leisure applications, including motorhomes, boats, outbuildings and DIY. Kits include a polycrystalline solar panel, charge controller, 5m cable and battery connectors. Require simple wiring and installation.
Regulator details:
-
8A Stecca charge controller
-
Features two stage charging - boost and float charge using pulse width modulation (PWM).
-
Screw terminals for ease of installation.
-
Status LED indicates battery charging.
-
Reverse leakage protection prevents power loss at night.
-
30 x 88 x 39 mm

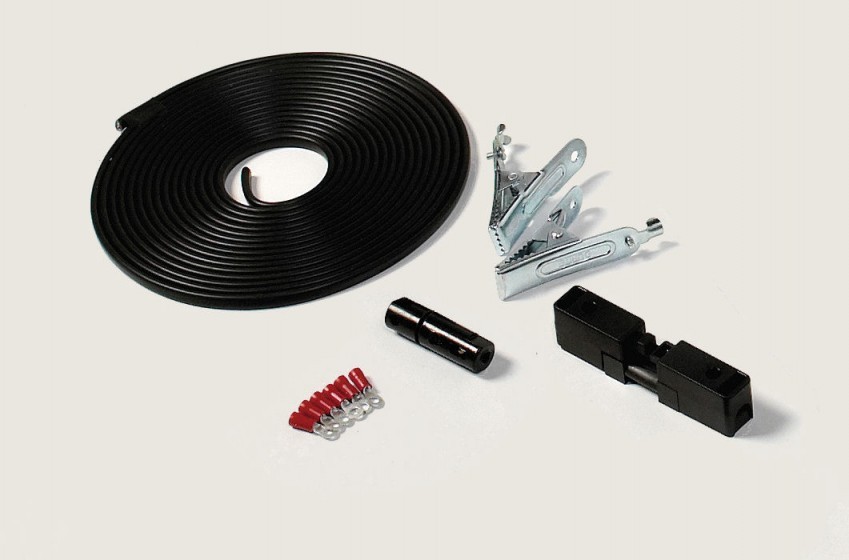

Cable and connector details:
- 5m long UV stable 2-core cable fitted to panel.
- Pair of 0.3m cables with ring connectors to fit between regulator and battery.

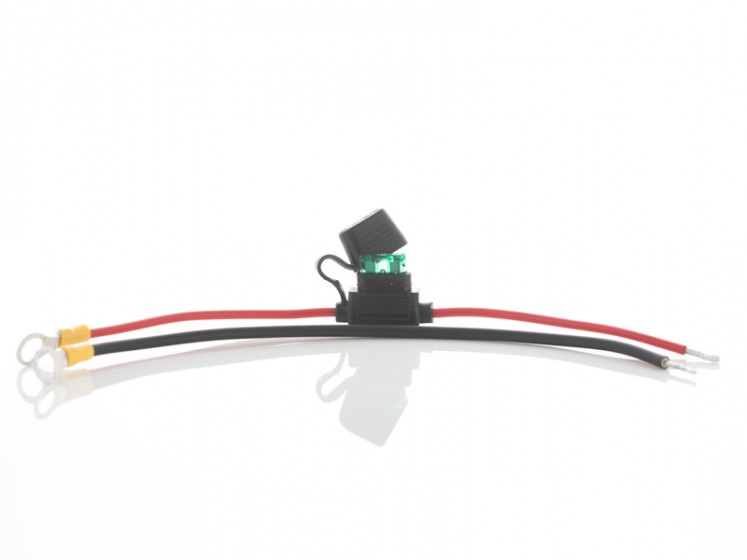

- Connector pack with in-line connector, in-line fuse, ring terminals and crocodile clips.
Solar panel details:
- Heavy duty anodised aluminium frame provides high wind resistance and convenient mounting access.
- Installation holes for standard bracket systems are provided.
- Screwdriver required for installation; full instructions included.
- 25 year panel output warranty.
- 40W panel rated 2.3A @ 17.5V
- Dims: 660 x 540 x 25 mm, 4.3kg
