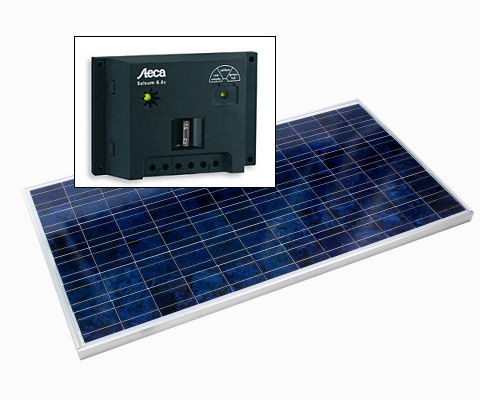

High quality 85W Yingli polycrystalline framed solar panel kits in a wide range of sizes. These 12V charging kits are suitable for permanent installation, and for many different professional, domestic and leisure applications, including motorhomes, boats, outbuildings and DIY. Kits include a polycrystalline solar panel, charge controller, cables and battery connectors.

Regulator details:

• 12V, 8A Stecca charge controller.
• Features two stage charging - boost and float charge using pulse width modulation (PWM).
• Screw terminals for ease of installation.
• Status LED indicates battery charging.
• Reverse leakage protection prevents power loss at night.
• 130 x 88 x 39mm

Cable details:

• UV stable multi-contact cables and waterproof connectors.

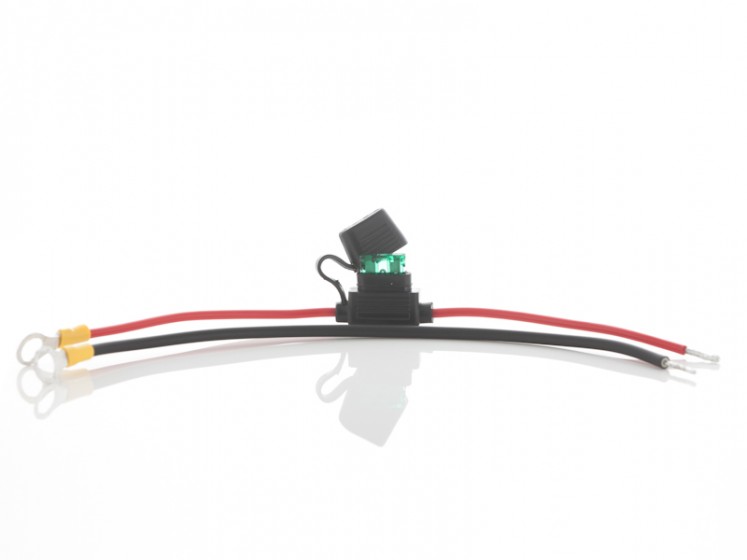

• Pair of 0.3m cables with ring connectors to fit between regulator and battery.

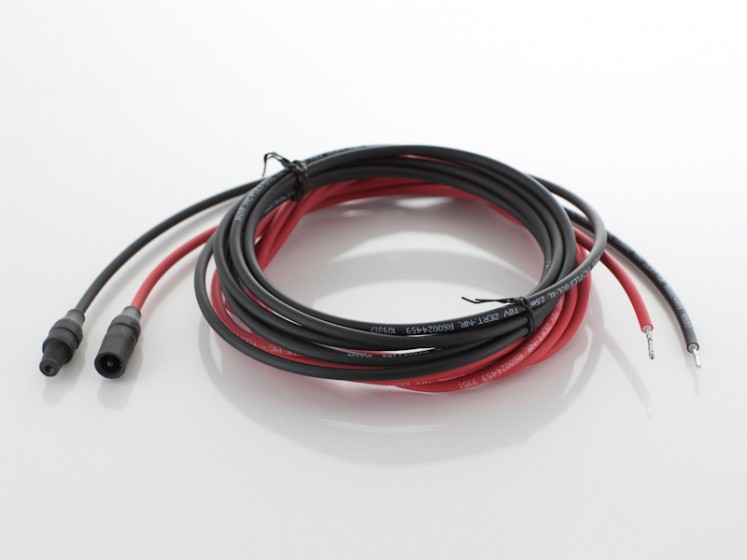

• Pair of approx 3m cables to fit between controller and panel, with connectors at panel end.
• Pair of 0.5m cables with connectors to fit into junction box on panel.

Solar panel details:

• Heavy duty anodised aluminium frame provides high wind resistance and convenient mounting access.
• Installation holes for standard bracket systems are provided.
• Screwdriver required for installation; full instructions included.
• 25 year panel output warranty.
• Dims: 1010 x 660 x 35 mm, 8.4 kg
• Rated 4.86A @ 17.5V
