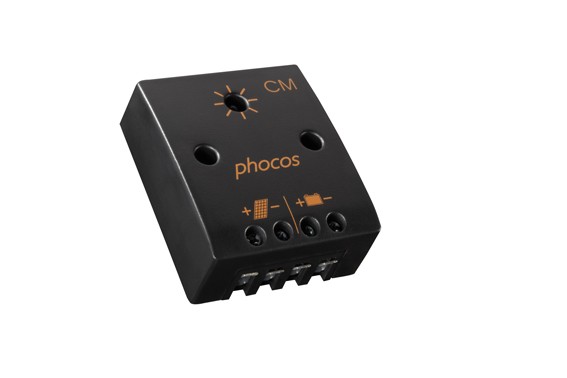

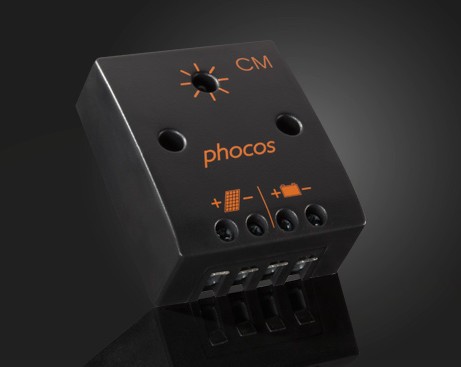

Highly reliable 12V, 10A charge controller, made by renown manufacturer Phocos (previously branded Sunsei). It will efficiently charge your batteries and provide years of protection from overcharging, prolonging your battery life and reducing maintenance requirements. The circuitry also prevents damage to the regulator and/or the battery, should the battery or the solar panel be connected with reverse polarity.

Simple, rugged electronics - a low component count and 100% solid state control functions make this a highly reliable controller.

Features two stage charging - boost and float charge using pulse width modulation (PWM)

Product features:

• Green status LED indicates battery charging
• Reverse leakage protection prevents power loss at night
• Overvoltage protection to stop your battery being overcharged
• Reverse polarity protection
• Boost voltage: 14.5V
• Float voltage: 13.7V
• Internal current use: <4mA
• Terminal Block - For sound and easy wire connections up to 16mm²
• Dimensions (mm): 60 x72 x 30
• Weight: 75g
• Colour: Now in black and branded Phocos

PLEASE NOTE - GREEN LED: When the green “Charging” LED is constant, the solar panel is charging the battery in boost mode. When the green "Charging" LED is flashing, the charger is in Pulse Width Modulation mode, either in boost mode or float mode. This indicates that the battery is being topped up or is full.
