130W DIY Solar panel kit

05002SE01Click to enlarge product image
05002SE01
  • £500.00 inc. VAT

  • 05002SE07
  • 5 in stock
  • No reviews yet
  • More Details

  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  10W DIY Solar Power kit 05002SE01 10.00 350.0 x 285.0 £110.00 £4.75 Buy Now
  130W DIY Solar panel kit 05002SE07 130.00 1470.0 x 680.0 £500.00 £15.00 Buy Now
  20W DIY Solar panel kit 05002SE02 20.00 350.0 x 525.0 £140.00 £6.25 Buy Now
  30W DIY Solar panel kit 05002SE03 30.00 510.0 x 535.0 £175.00 £6.25 Buy Now
  40W DIY Solar panel kit 05002SE04 40.00 660.0 x 540.0 £200.00 £6.25 Buy Now
  60W DIY Solar panel kit 05002SE05 60.00 660.0 x 630.0 £275.00 £15.00 Buy Now
  90W DIY Solar panel kit 05002SE06 90.00 660.0 x 1010.0 £350.00 £15.00 Buy Now

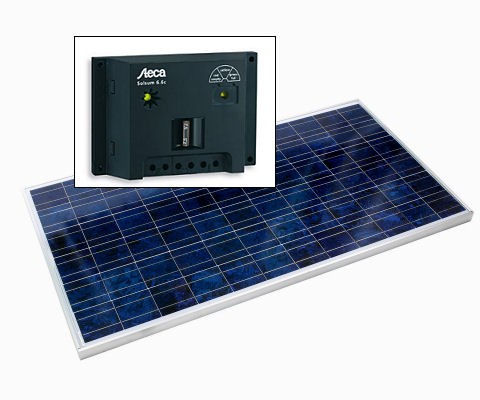

High quality 130W Yingli polycrystalline framed solar panel kits:
These 12V charging kits are suitable for permanent installation in many different
professional, domestic and leisure applications, including:

  • motorhomes
  • boats
  • outbuildings
  • DIY.

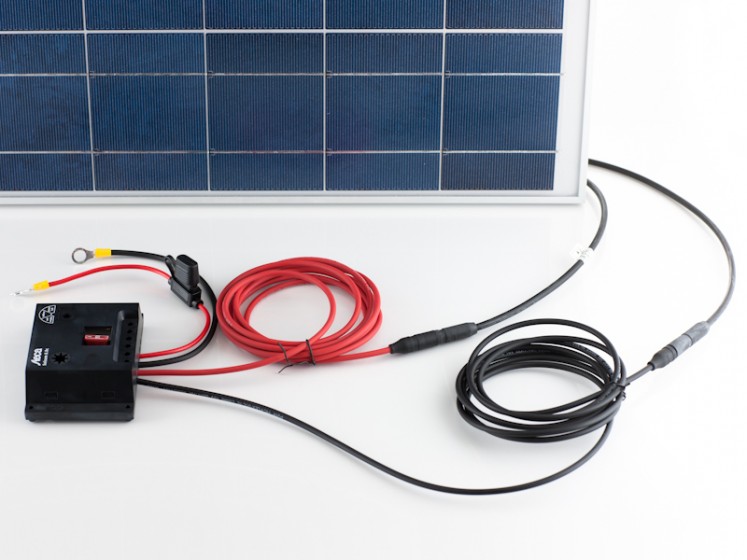

Kits include a polycrystalline solar panel, charge controller, cables and battery connectors.


Regulator details:

  • 10A EPHC charge controller
  • Dimensions (mm): 140 x 88 x 124, Weighs 250g
  • 4 charging states, including PWM
  • Low voltage disconnect
  • Screw terminals for ease of installation.
  • Status LED indicates battery charging.
  • Reverse leakage protection prevents power loss at night.

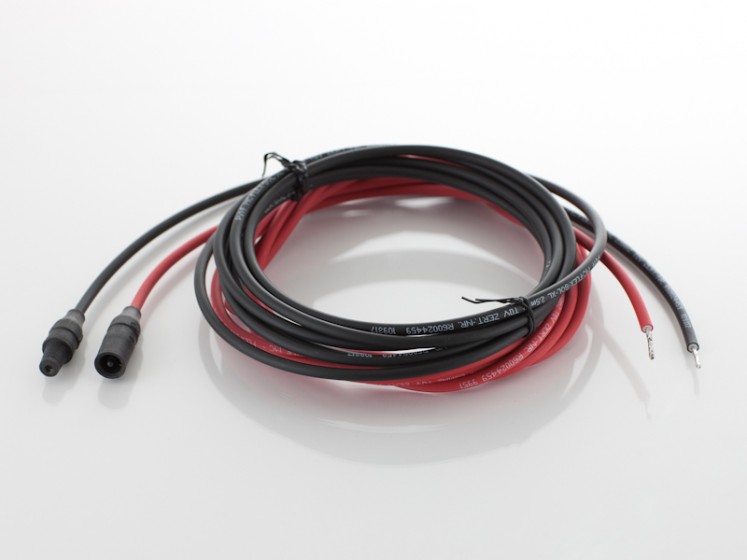

Cable details:

  • UV stable multi-contact cables and waterproof connectors.
  • Pair of 0.3m cables with ring connectors to fit between regulator and battery.
  • Pair of approx 3m cables to fit between controller and panel, with connectors at panel end.
  • Pair of 0.5m cables with connectors to fit into junction box on panel.

Solar panel details:

  • Heavy duty anodised aluminium frame provides high wind resistance and convenient mounting access.
  • Installation holes for standard bracket systems are provided.
  • Screwdriver required for installation; full instructions included.
  • 25 year panel output warranty.
  • Dims: 1470 x 680 x 50 mm, 16.0 kg
  • Rated 7.43A @ 17.5V
  • *
  • *
  • *
  • *
