64W Inpro-Solar Boat Kit

| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| 11W Inpro-Solar Boat Kit | 05003IP01 | 11.00 | 450 x 270 | £235.00 | £7.50 | Out of stock | |
| 15W Inpro-Solar Boat Kit | 05003IP02 | 15.00 | 650 x 250 | £265.00 | £7.50 | Buy Now | |
| 22W Inpro-Solar Boat Kit | 05003IP03 | 22.00 | 430 x 450 | £300.00 | £7.50 | Buy Now | |
| 32W Inpro-Solar Boat Kit | 05003IP04 | 32.00 | 590 x 450 | £390.00 | £7.50 | Buy Now | |
| 64W Inpro-Solar Boat Kit | 05003IP05 | 64.00 | 590.0 x 900.0 | £695.00 | £7.50 | Buy Now |

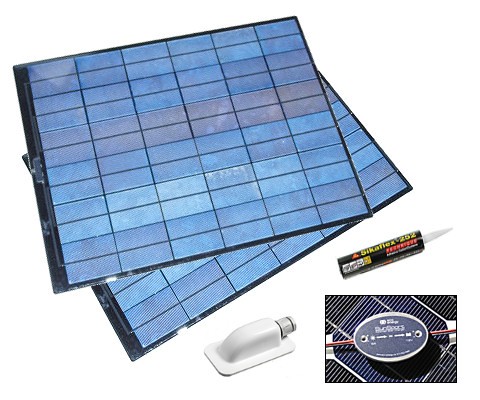

This marine grade solar kit contains two 32W black-backed Inprosolar panels. These can be glued or screwed onto flat surfaces. The kit also includes a Sunport 6 regulator, single port cable gland, fuse and a 310cc tube of adhesive. Once connected, the solar controller in this kit can remain permanently hooked up, even through winter, without draining the batteries, as it uses zero power in the dark.
Solar Panel
Each durable solar panel can be screwed or glued onto a flat surface. Backed with fibreglass, (which makes it lightweight), it is encapsulated within a highly efficient transparent UV resistant polymer. Thin and compact, the panel can even be walked on with soft shoes.
* 10 year warranty
* fully encapsulated junction box with 1m cable
* Dimensions per panel (mm): 590 x 450 x 4; 2.5kg
* Rating (per panel): 2A at 16.7V
Solar Controller
With automatic nighttime shutdown the Sunsport 6 uses absolutely zero power in the dark, which means boaters can leave it connected all winter without draining the batteries.
* Save up to 10% of the power from a 5 Watt module.
* Protection (PV & Battery), against short-circuit & reverse polarity, overload, over temperature & battery removal
* Can charge a completely discharged battery
* Regulation method: Low frequency On-Off series; Typical set points: Off: 14.1 Volts On: 13.3 Volts
* Extreme design -40 degrees to +70 degrees C
* Series design (not shunt)
* Reliable - 100% solid state
* No radio interference
* LED indicates charging
* Wall mountable; stainless steel mounting screws provided
* Solid aluminium case, completely sealed in epoxy potting
* Dimensions: 6.4 x 9.6 x 1.8 cm; 210g
* Battery consumption zero, 0.0 mA
* Typical solar consumption 8 mA daylight only, 3 mA without LED
* 5 year warranty
