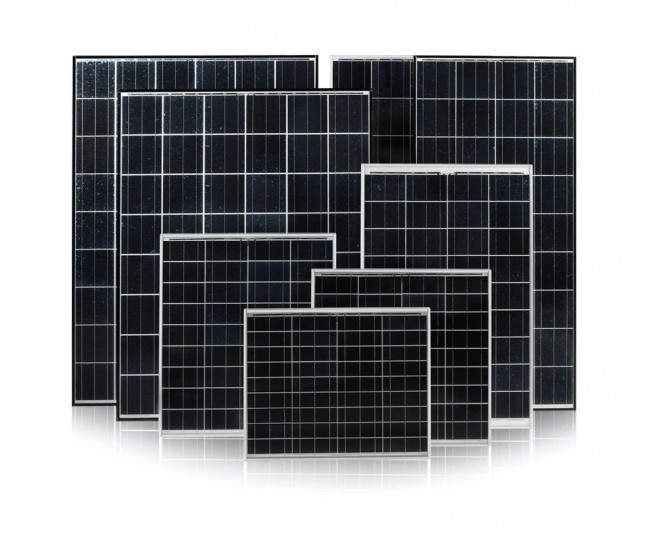

Kyocera KD Series Polycrystalline framed solar modules
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| 50W Kyocera KD50SE-1P Framed Crystalline Solar Module | 06001KY06 | 50.00 | 744 x 706 | £285.00 | £7.50 | Buy Now | |
| 70W Kyocera KD70 Framed Crystalline Solar Module | 06001KY07 | 70.00 | 778.0 x 660.0 | £385.00 | £7.50 | Buy Now | |
| 135W Kyocera KD135SX-1PU Solar Panel | 06001KY09 | 135.00 | 1500.0 x 660.0 | £485.00 | £7.50 | Buy Now | |
| 95W Kyocera KD95 Framed Crystalline Solar Module | 06001KY08 | 95.00 | 1043.0 x 660.0 | £500.00 | £7.50 | Buy Now |
Kyocera´s advanced cell processing technology and automated production facilities have produced a multi-crystal solar cell with an efficiency of over 15%. All modules are constructed using a tempered glass front, EVA pottant and a PVF backing to provide maximum protection from the most severe environmental conditions.The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation.
- Ideal for a wide range of professional applications including rural electrification, marine navigation and bouys, pumping, repeater stations and railroad signals.
- Kyocera modules pass a range of test including thermal cycling, thermal shock, hailstone impact, salt mist and wind and water impact.
- UL 1703 certified.
- 10W and 20W modules come with potted junction box with approx 3m 2-core cable.
- Higher power modules come with weatherproof junction box.
- 25 year output warranty.
For further details and technical sheets please see indiviual product pages.
****superb performing panel!
By Tom & Marilyn Evans on 22nd Aug 2011 of: 70W Kyocera KD70 Framed Crystalline Solar Module
We use this panel on our caravan when attending rallies that lack EHP. It more than meets our requirements ion topping up the 12v 110amp battery during the day after using the TV in the evening. It has met our needs over a 7 day rally and would probably do two to three weeks, or even longer depending on the condition of the battery! Well built and sturdy!
It can be placed on the roof via the Heki light and secured inside the van. Much safer all round than placing it on the ground where it could be blown over buy a gust of wind; knocked over accidentally or intentionally 'walk' away!
