95W Kyocera KD95 Framed Crystalline Solar Module

Kyocera KD seriesClick to enlarge product image

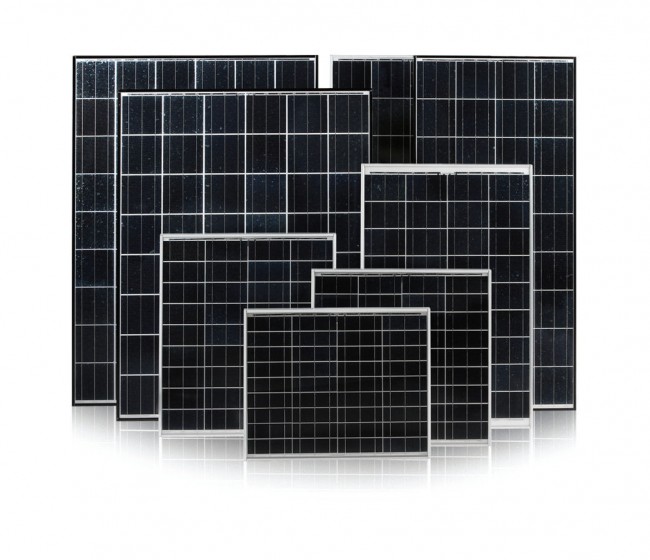

Kyocera KD series
  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  50W Kyocera KD50SE-1P Framed Crystalline Solar Module 06001KY06 50.00 744 x 706 £285.00 £7.50 Buy Now
  70W Kyocera KD70 Framed Crystalline Solar Module 06001KY07 70.00 778.0 x 660.0 £385.00 £7.50 Buy Now
  135W Kyocera KD135SX-1PU Solar Panel 06001KY09 135.00 1500.0 x 660.0 £485.00 £7.50 Buy Now
  95W Kyocera KD95 Framed Crystalline Solar Module 06001KY08 95.00 1043.0 x 660.0 £500.00 £7.50 Buy Now

95 Watt Kyocera solar panel (KD95SX1-PU), perfect for off-grid use in rural & remote areas.

This high performance solar panel converts sunlight to electricity with an efficiency rating of over 16%. Suitable for:

  • Stand-alone systems (electrifying remote houses, holiday homesand allotment systems, etc.)
  • Supplying electricity to outlying villages and medical institutions in rural areas and development zones
  • Emergency power supply, protection against catastrophes
  • Pumping systems (drinking water supply and irrigation)
  • Telecommunications (mobile phone networks, booster stations, etc.)
  • Oil & gas (corrosion proofing, control, monitoring, etc.)

 Set in a sturdy aluminium frame and designed for the harshest weather conditions, the panel is also hailstorm resistant.

 Kyocera modules pass a range of test including thermal cycling, thermal shock, hailstone impact, salt mist and wind and water impact. Features include:



  • Polycrystalline Solar Cells
  • Junction box contains bypass diodes to eliminate hot spot effect
  • Dimensions (mm):  1043 x 660 x 36
  • Weight: 8.5Kg
  • Rating: 95 Watt, 5.3A, 17.9 Volt
  • 20 Year Output Performance Warranty (max loss 10% in 10 years, 20% in 20 years)

Requires a charge controller - see related products tab for suitable products.

  • ****superb performing panel!

    By Tom & Marilyn Evans on 22nd Aug 2011 of: 70W Kyocera KD70 Framed Crystalline Solar Module

    We use this panel on our caravan when attending rallies that lack EHP. It more than meets our requirements ion topping up the 12v 110amp battery during the day after using the TV in the evening. It has met our needs over a 7 day rally and would probably do two to three weeks, or even longer depending on the condition of the battery! Well built and sturdy!

    It can be placed on the roof via the Heki light and secured inside the van. Much safer all round than placing it on the ground where it could be blown over buy a gust of wind; knocked over accidentally or intentionally 'walk' away!
