This 170W kit is designed to charge your motorhome, caravan or narrowboat 12V battery (and the controller prevents overcharging). It contains everything you need for permanent mounting on a flat roof and is simple to install.

The two 85W panels are fitted with high transmission glass and bypass diodes, which means they make the most of sunlight and minimise the effect of shadows.


Solar panels

• 2 x 85W Yingli solar panel with high transmission glass front, aluminium frame, and weatherproof junction box with screw terminals.
• Panels includes bypass diodes to minimise the effect of shadows.
• 25 year module power output warranty.
• Panel dimensions: 1010 x 660 x 35mm; 8.4kg - these dimensions are for each indiidual panel
• Rated 170W : 9.72A @ 17.5V

Regulator

• Solarix PRS1515 solar charge controller
• Optimum battery maintenance programme that varies depending on the the battery status.
• Dimensions (mm): 187 x 96 x 45
• Weight: 345g
• For full details please click here

Cabling

• Each panel comes fitted with approx. 1m of cabling ending in MC3 connectors.

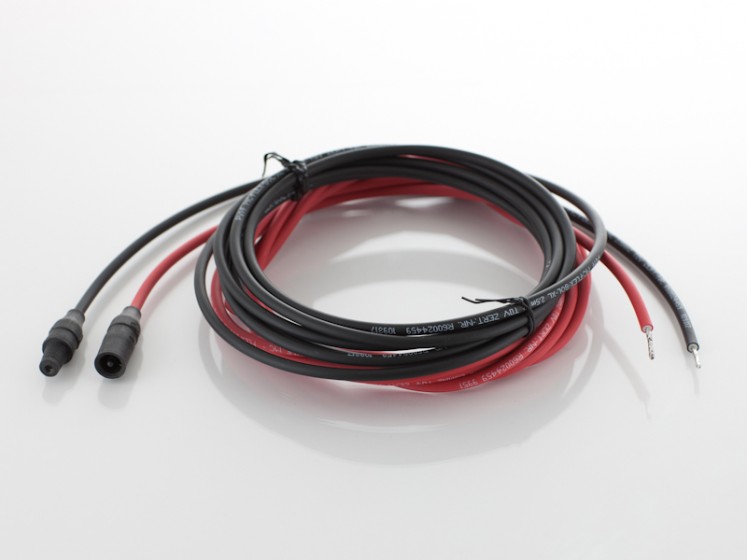

• 3m extension cables (+ve and -ve) terminating in MC3 connectors
• The panels are joined in parallel with MC3 Y connectors (not shown in images at present) fitted between the 1m panel cables and 3m extension cable

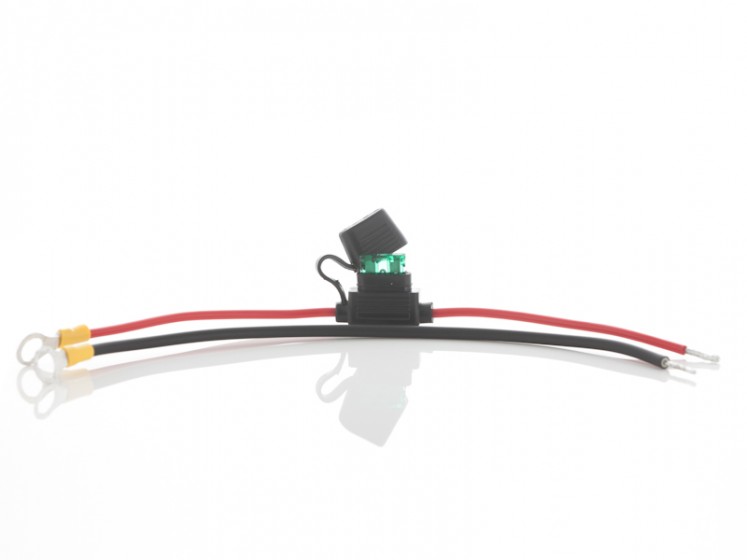

• Fused battery cables with ring connectors to fit to battery
• No soldering or difficult wiring is required – we've done it all for you!

Mounting

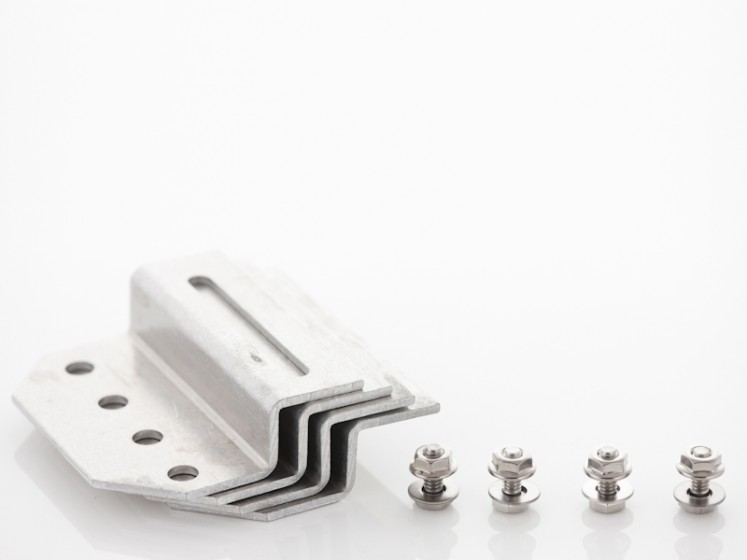

• 2 x Simple mounting brackets allow you to fix your panel to your motorhome roof.
• anodized aluminum with stainless steel nuts, bolts and washers

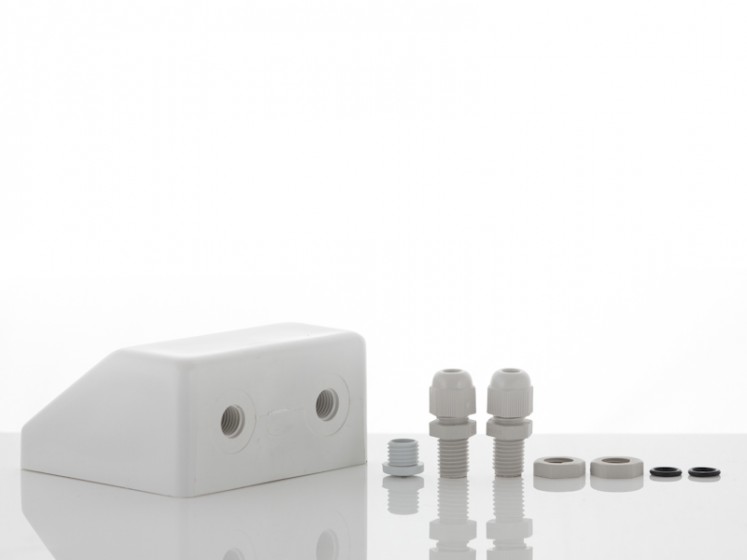

• Cable gland and 100ml Sika 291 sealant

 Please note, the solar panels in these kits are intended for permanent fixing.
