JA Solar Mono On-grid panel Kits

  • From: £1489.61 inc. VAT

  • 06007CE00
  • 8 in stock
  • 12341 Review
  • More Details

  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  1kw JA Solar Mono On-grid Solar Panel Kit 06007CE01 1000.00 1689 x 996 £1489.61 £99.00 Buy Now
  2kw JA Solar Mono On-grid Solar Panel Kit 06007CE02 2000.00 1689 x 996 £2382.49 £99.00 Buy Now
  3kw JA Solar Mono On-grid Solar Panel Kit 06007CE03 3000.00 1689 x 996 £3332.09 £99.00 Buy Now
  3.68kw JA Solar Mono On-grid Solar Panel Kit 06007CE04 3680.00 1689 x 996 £3626.81 £99.00 Buy Now

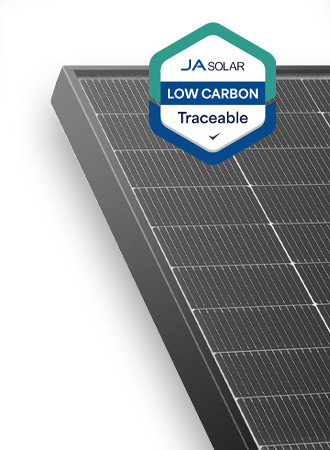

The JA Solar 340W LW Mono Percium Half-Cell Silver Frame panel is a tier 1, bankable, 120 cell monocrystalline module from the leading global manufacturer JA Solar.

Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

High power output and module efficiency up to 20.2%.

With excellent low light performance and high reliability due to stringent quality control, these modules are certified to withstand challenging environmental conditions.

General Data:

  • Module dimensions: 1689 x 996 x 35mm
  • 20.2% Maximum efficiency
  • Voc: 41.36 V
  • IMPP: 9.82 A
  • Cell Orientation: 60 cells (6 x 10) top half and 60 cells (6 x 10) bottom half
  • Aluminium alloy frame
  • 4 mm² solar cable
  • MC4 connectors
  • Weight: 18.7 kg
  • ****so far so good

    By Home Farm on 25th Nov 2020 of: 3kw JA Solar Mono On-grid Solar Panel Kit

    Our solar 6kW PV array from JA Solar has been up for four months and I thought it was a good time to have a look at their performance providing an unbiased report, based on real life experiences, illustrating power output on overcast, rainy and sunny days in the UK. We also take a look at our SolarEdge inverter.

    You can watch the video here: https://youtu.be/wsyPOzZkKNY

    More information on our array and inverter is available here: https://myhomefarm.co.uk/solar-pv-and-inverter-review
