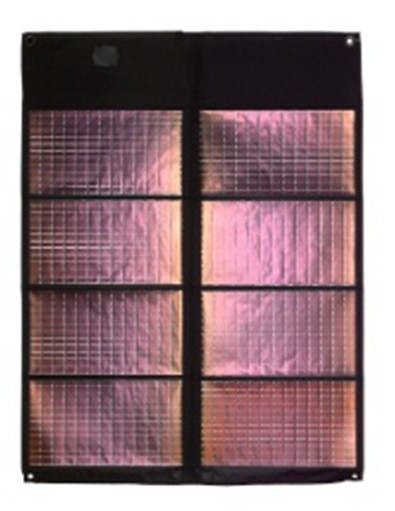

20w Powerfilm F16-1200

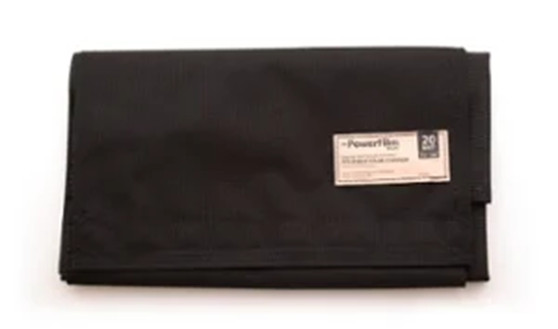

20W F16-1200 Foldable Solar Panel foldedClick to enlarge product image
20W F16-1200 Foldable Solar Panel folded

The 20W foldable solar charger takes you to the next level in portable solar power generation, increasing capability and charging speed.

The 20W foldable solar charger provides you with a step-up in power point for solar charging small to medium electronic devices directly using the DC power or by utilizing one of many available accessories. Unlike "CIGS" solar technology, there is no need for "sun-soaking" the panel for optimum performance after periods of storage - so PowerFilm solar provides critical power immediately.

Cable Included:

  • 1 x RA-2 12V female cigarette lighter adapter (not shown in photo)



Best uses and suggested accessories:

    • 12V battery charging
    • Remote power - HAM Radio, Water Purification, Power Tools
    • Camp lighting
    • Small DC electric coolers
    • Netbook PC
    • RA8 - 15ft extension cord with alligator clip connectors
    • RA9 - 4.5A Charge controller
    • RA13 - Anderson power pole connector
    • RA7 - 15ft Extension Cord.
    • RA-6-HD Daisy Chain Cable, connect a second panel (must be the same voltage) in parallel generating up to 20A (if necessary, use a charge controller appropriate for the combined panel output).
    • RA14B - 2.4A Dual USB 12V Adaptor, use with the included 12V Female Car Charger Adapter (RA-2) to charge USB devices

Specs

  • Operating Voltage: 15.4
  • Wattage: 20
  • Current: 1.2 amps
  • Width (mm): 642.6 unfolded; 190.5 folded
  • Length (mm): 856 unfolded; 322.6 folded
  • Width (in): 25.3 unfolded 7.5 folded
  • Length (in): 33.7 unfolded; 12.7 folded
  • Folded Depth 38.1mm; 1.5in
  • Weight (kg): 0.5 kg
  • Weight (lb): 1.0 lbs
  • *
  • *
  • *
  • *
