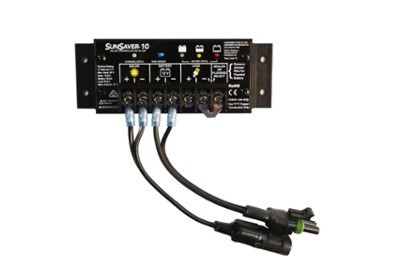

PowerFilm's 10A Charge Controller (CC12V-10) comes with pre-wired PowerFilm Connectors. Plug and Play with any Amorphous Foldable or Rollable and the 100 Watt Soltronix Solar Panel.

This charge controller is compatible with sealed lead-acid, flooded lead-acid, gelled lead-acid, and absorbed glass mat (AGM) battery chemistries or 12V lithium drop-in replacements.

Exceptional Quality

• Failure rate of less than 1 per 1,000 shipped (<0.1%)
• 100% solid-state. Power MOSFET design
• Manufactured in an ISO 9000 factory
• 100% pre-shipment functional testing

Longer Battery Life

• Advanced PWM charging
• Series design (not shunt) for cool operation
• 4-stage charging: bulk, absorption, float, equalize
• Optimized sealed or flooded battery set points.
• Temperature-compensated charging
• Low voltage load disconnect on several versions

Designed for Harsh Environments

• Temperature rating of –40°C to +60°C
• Epoxy encapsulation for protection against humidity and dust ingress
• Corrosion protection: marine rated terminals and anodized aluminium case
• Certified for use in hazardous locations

Easy to Install and Use

• Factory pre-sets result in no required install settings.
• Electronic protections prevent damage from wiring mistakes.
• Fully automatic operation and fault recovery
• LED’s display extensive information about status, faults and battery condition Solar Controller

Physical Specifications

Weight:

• 13.9 (oz)
• 394.0 (g)
