Powerfilm MP3-25 (31mA @ 3v) mini solar panel

MP3-25Click to enlarge product image
MP3-25

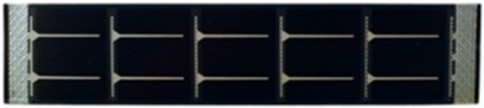

This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

Electrical Specifications:

Full Sun

  • Power: 93mW

  • Operating Voltage: 3.0V

  • Current: 31mA

1/4 Sun

  • Power: 21mW

  • Operating Voltage: 3.0V

  • Current: 7.0mA

All Light Levels

  • Average Voc: 4.1V

  • Maximum Voc: 4.6V

  • Isc: 35.0mA

Physical Specifications:

  • Dimensions: 114.0 x 24.0 (mm) / 4.49 x 0.94 (in)

  • Weight: 0.02oz / 0.73g

  • Thickness: 0.22mm



  • *
  • *
  • *
  • *
