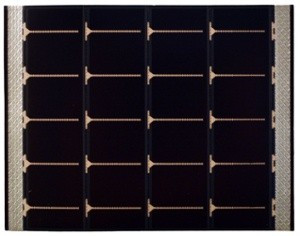

Powerfilm MPT4.8-75 (50mA @ 4.8V) mini solar panel

MPT4.8-75Click to enlarge product image
MPT4.8-75

This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

Electrical Specifications:

Full Sun

  • Power: 240mW

  • Operating Voltage: 4.8V

  • Current: 50mA

1/4 Sun

  • Power: 54mW

  • Operating Voltage: 4.8V

  • Current: 11.3mA

All Levels

  • Average Voc: 6.4V

  • Maximum Voc: 7.4V

  • Isc: 64mA

Physical Specifications:

  • Dimensions: 94.0 x 73.0 (mm) / 3.70 x 2.87 (in)

  • Weight: 0.06oz / 1.86g

  • Thickness: 0.22mm



  • *
  • *
  • *
  • *
