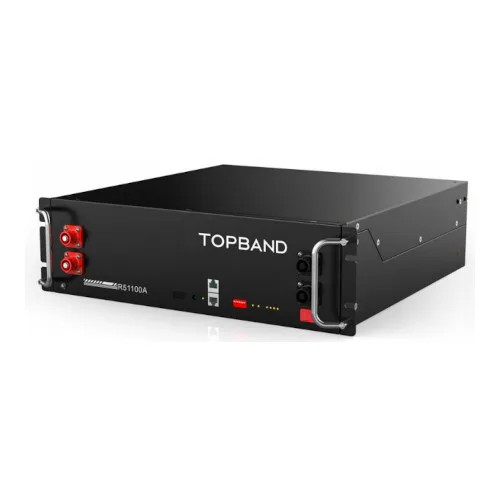

Topband RS-R Series 51.2V 100Ah Heated Lithium Battery
TOPBAND RS-R series battery packs are rack type residential lithium batteries, designed entirely for residential ESS applications.
This is is the heated version.
Product features
Safe & reliable
High safety LiFePO4 battery. Compliance with IEC62619, UL1973, UN38.3, CE, UKCA etc.
Modular
Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Ultra performance
More than 6000 cycles, self-developed BMS/Cell/Pack to ensure best quality.
Compact & flexible
3U(133mm) standard height design. Optional bracket kits for different installation scenarios.
Compatibility
Compatible with most hybrid/battery inverters in self-consumption, back-up and off-grid applications.
Intelligence
Strong pre-charge and balancing capability. Remote data history & firmware upgrading function via T-smart Cloud platform.
| Voltage | 51.2V |
| Battery Capacity | 100Ah |
| Recommended Discharge Current | 50A |
| Cycle Life | >6000 |
| Max Charge Current | 70A |
| Protection Category | IP20 |
| Dimensions | W482 x H133.5 x D460mm |
| Weight | 46Kg |
| Warranty | 5 Years |
| Battery Technology | Lithium |
| Battery Application | Deep Cycle |
