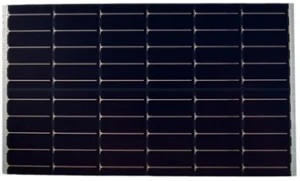

1.73W Powerfilm MP7.2-150F (200mA @ 7.2V) mini solar panel

MP7.2-150FClick to enlarge product image
MP7.2-150F

PreviousClick images to enlargeNext

Modules in the PowerFilm Wireless Electronics Series offer a new opportunity to solve the old problems of limited power for wireless electronics in both portable and remote electronic applications.

  • lightweight, paper thin and durable
  • flexible enough to curve around an object 3 inches in diameter
  • will not break if dropped
  • wide range of sizes and power configurations available
  • thin profile enables them to be easily integrated with devices for solar recharging or direct power
  • Ideal for recharging AA, AA, 6V and 2V batteries
  • Simple to connect - just solder or crimp to the copper tape.



Please note: these modules do not have a UV stabilised surface.



Electrical Specifications:

Full Sun

  • Power: 1.73W

  • Operating Voltage: 7.2V

  • Current: 240mA

1/4 Sun

  • Power: 389mW

  • Operating Voltage: 7.2V

  • Current: 54.0mA

All Levels

  • Average Voc: 10.5V

  • Maximum Voc: 11.1V

  • Isc: 308mA

Physical Specifications:

  • Dimensions: 253.0 x 146.0 (mm) / 9.96 x 5.75 (in)

  • Weight: 1.01oz / 28.68g

  • Thickness: 0.61mm





  • *
  • *
  • *
  • *
