KEY FEATURES AND BENEFITS

Approved for use in hazardous locations: UL/CSA Class1, Division 2, Groups A-D and ATEX/IECEx Zone 2, Gas Group IIC

• High Reliability

Latest electronic and environmental protections, quality control, and design considerations comply with IEC 62109 and promote longevity in the harshest environments

• High Temperature Operation

Full nameplate current rating, both solar and load up to 60°C continuous

• Auto-Battery-Select

12V and 24V systems

• Data Logging

Up to 256 days of solar charge and load consumption data

• Self-diagnostics

Continuous monitoring and reporting of any errors or system faults through its status LED’s, optional display and communication port

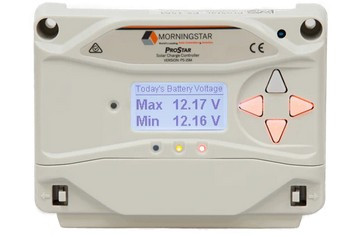

• Meter

High resolution LCD, multi-lingual backlit graphical display of system volage, current, temperature, lighting settings, etc

• Custom Programming

Dip switches, meter interface, or connection with a computer can be used to adjust charging, load communications, and lighting control

• Automatic Solar-Based Lighting Control

Field adjustable, multi-event load control enables powerful options for solar lighting systems

• MODBUS Communications

Open standard MODBUS communications protocol allows for control and remote data access

• SNMP (Simple Network Management Protocol)

Provides more detailed monitoring of all system data with existing IT management and architecture





Mechanical

• Dimensions:

— 15.3(W) x 10.5(L) x 5.5(D) cm

— 6.0(W) x 4.1(L) x 2.2(D) in

Meter

• Resolution: 128 X 64 pixels

• Viewing Area: 5.0 cm x 2.5 cm

• Display Color: Blue on white

• Backlight: LED
