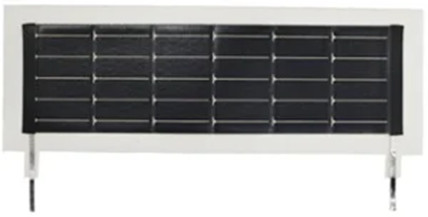

0.864W Powerfilm P7.2-75 (120mA @ 7.2V) mini solar panel
P7.2-75FClick to enlarge product image
The especially rugged construction of these PowerFilm modules makes them ideal for hobby or OEM application where the panel is permanently outdoors and exposed to the elements.
- lightweight, paper thin and durable
- flexible enough to curve around an object 3 inches in diameter
- will not break if dropped
- wide range of sizes and power configurations available
- thin profile enables them to be easily integrated with devices for solar recharging or direct power
- Ideal for recharging AA, AA, 6V and 2V batteries
- Simple to connect - just solder or crimp to the copper tape.
- UV stabilised surface with extra edge seal for weather production
- tin-coated copper leads extend from the module.
- Coating the leads with an RTV silicon compound can provide a tightly sealed package
Electrical Specifications:
Full Sun
-
Power: 864mW
-
Operating Voltage: 7.2V
-
Current: 120mA
1/4 Sun
-
Power: 194mW
-
Operating Voltage: 7.2V
-
Current: 27.0mA
All Levels
-
Average Voc: 10.5V
-
Maximum Voc: 11.1V
-
Isc: 154mA
Physical Specifications:
-
Dimensions: 283.0 x 99.0 (mm) / 11.14 x 3.90 (in)
-
Weight: 1.08oz / 30.66g
-
Thickness: 0.57mm
UV Qualities:
To protect the panel from the weather and UV, the module is encapsulated in ETFE/TPU.
- ETFE passes more than 90% of the UV light therefore is almost UV inert.
- TPU blocks the UV light around 400nm and is UV resistant.
With this UV resistant TPU layer, the panel’s lifetime is double to triple the standard few years it would have unprotected
