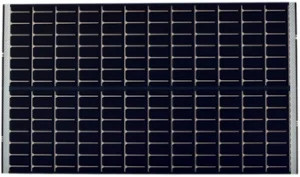

1.54W Powerfilm MPT15-150 (100mA @ 15.4V) mini solar panel

MPT15-150Click to enlarge product image
MPT15-150

The MPT15-150 small solar cell is from the PowerFilm® Wireless Electronics Series.  It is lightweight, flexible, paper thin & durable and rated at 100mA & 15.4V.

Use it for your 12V solar charging or solar power project.

Features:

  • Will not break if dropped
  • Ideal for charging 12V batteries or providing solar power to 12V projects.
  • Simple to connect - just solder or crimp to the copper tape



Please note: This cell does not have a UV-stabilized surface.



Electrical Specifications:

Full Sun

  • Power: 1.54W

  • Operating Voltage: 15.4V

  • Current: 100mA

1/4 Sun

  • Power: 347mW

  • Operating Voltage: 15.4V

  • Current: 22.5mA

All Levels

  • Average Voc: 19.0V

  • Maximum Voc: 22.2V

  • Isc: 128mA

Physical Specifications:

  • Dimensions:   253.0 x 146.0 (mm) / 9.96 x 5.75 (in)

  • Weight: 0.97oz / 27.50g

  • Thickness: 0.61mm



  • *
  • *
  • *
  • *
