60W DIY Solar panel kit

05002se00-highWClick to enlarge product image
05002se00-highW
  • £275.00 inc. VAT

  • 05002SE05
  • 6 in stock
  • No reviews yet
  • More Details

  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  10W DIY Solar Power kit 05002SE01 10.00 350.0 x 285.0 £110.00 £4.75 Buy Now
  130W DIY Solar panel kit 05002SE07 130.00 1470.0 x 680.0 £500.00 £15.00 Buy Now
  20W DIY Solar panel kit 05002SE02 20.00 350.0 x 525.0 £140.00 £6.25 Buy Now
  30W DIY Solar panel kit 05002SE03 30.00 510.0 x 535.0 £175.00 £6.25 Buy Now
  40W DIY Solar panel kit 05002SE04 40.00 660.0 x 540.0 £200.00 £6.25 Buy Now
  60W DIY Solar panel kit 05002SE05 60.00 660.0 x 630.0 £275.00 £15.00 Buy Now
  90W DIY Solar panel kit 05002SE06 90.00 660.0 x 1010.0 £350.00 £15.00 Buy Now

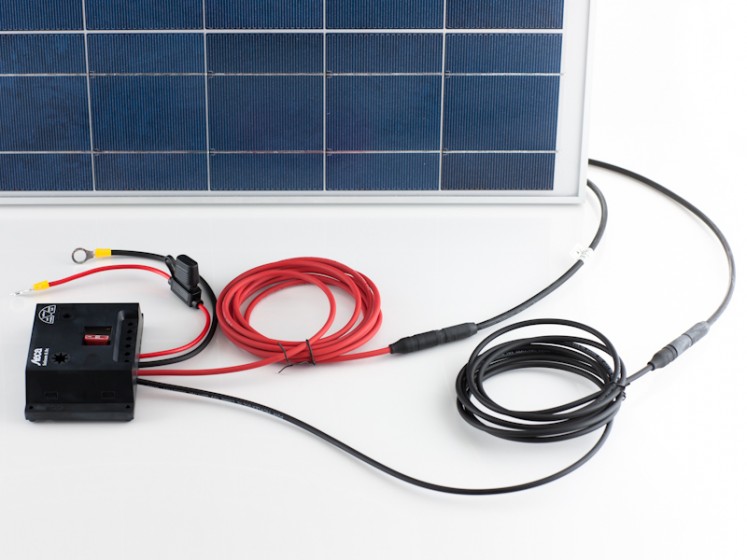

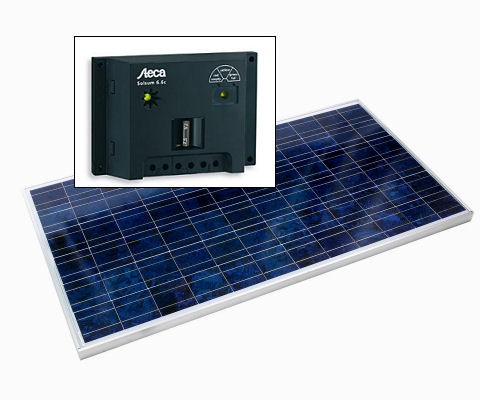

High quality 60W Yingli polycrystalline framed solar panel kits. These 12V charging kits are suitable for permanent installation, and for many different professional, domestic and leisure applications, including motorhomes, boats, outbuildings and DIY. Kits include a polycrystalline solar panel, charge controller, cables and battery connectors.


Regulator details:

  • 10A EPHC charge controller
  • Dimensions (mm): 140 x 88 x 124, Weighs 250g
  • 4 charging states, including PWM
  • Low voltage disconnect
  • Screw terminals for ease of installation.
  • Status LED indicates battery charging.
  • Reverse leakage protection prevents power loss at night.

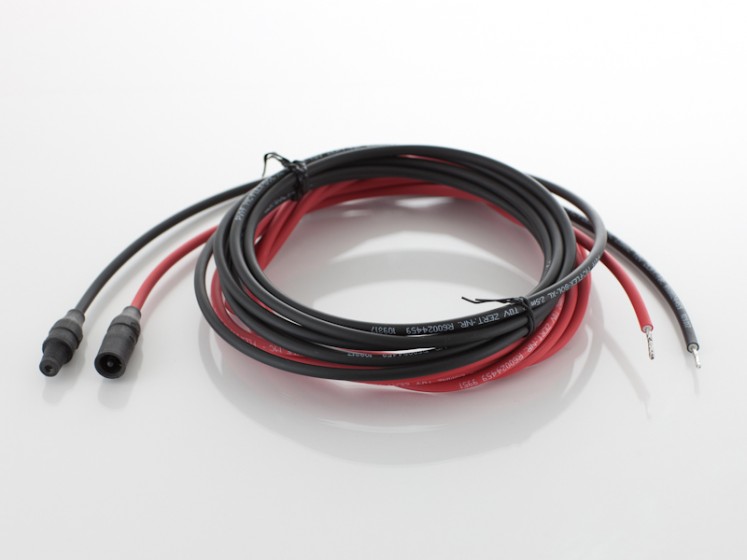

Cable details:

  • UV stable multi-contact cables and waterproof connectors.

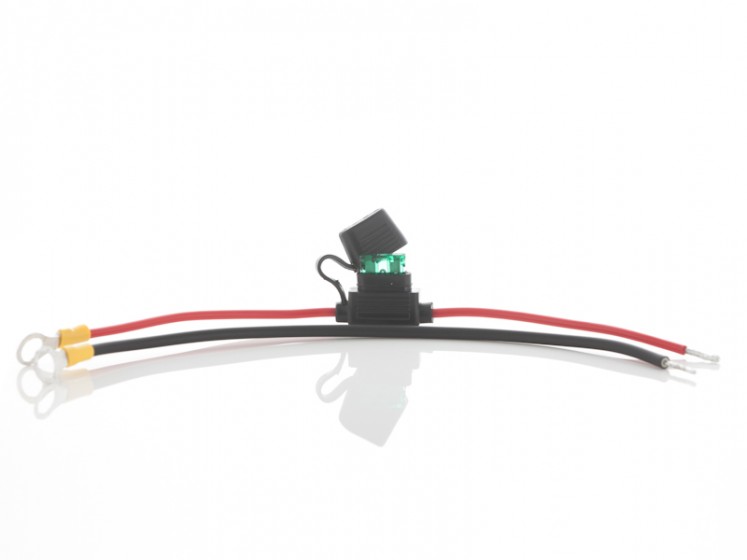

  • Pair of 0.3m cables with ring connectors to fit between regulator and battery.
  • Pair of approx 3m cables to fit between controller and panel, with connectors at panel end.
  • Pair of 0.5m cables with connectors to fit into junction box on panel.

Solar panel details:

  • Heavy duty anodised aluminium frame provides high wind resistance and convenient mounting access.
  • Installation holes for standard bracket systems are provided.
  • Screwdriver required for installation; full instructions included.
  • 25 year panel output warranty.
  • Dims: 660 x 630 x 35 mm, 6.5kg
  • Panel rated 3.4A @ 17.5V



  • *
  • *
  • *
  • *
