Victron EasySolar, an all-in-one solar power solution. These combine an MPPT solar charge controller, an inverter/charger and a GX device all in one enclosure. Easy to install with minimal wiring.

Ideal for small off-grid systems with loads such as lighting, computers, chargers, electronic appliances and small power appliances.

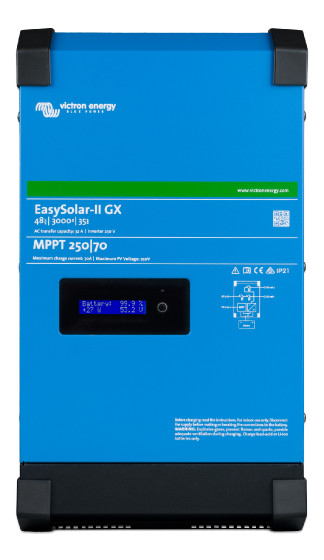

The Victron EasySolar-II GX integrates the following elements:

• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16-character display

These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

In addition, Wi-Fi can be used to set up the system and to change settings.

Solar charge controller

The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.  EasySolar-II GX VRM app for Wi-Fi Monitor and manage your Victron Energy system from your smart phone and tablet.

The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device

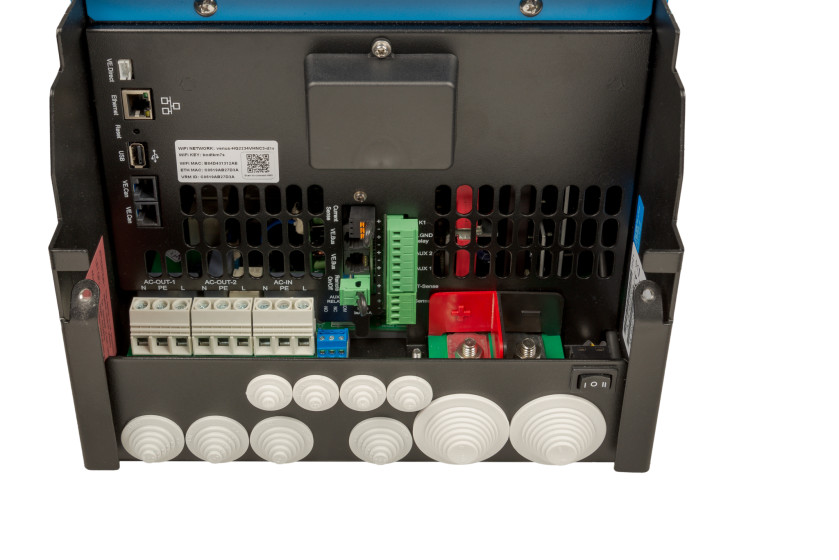

The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
• A USB port
• An Ethernet port
• A VE.Direct port The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.

Comes with a 5 year warranty as standard
