Solis S5 6kW 3 Phase Dual MPPT - DC

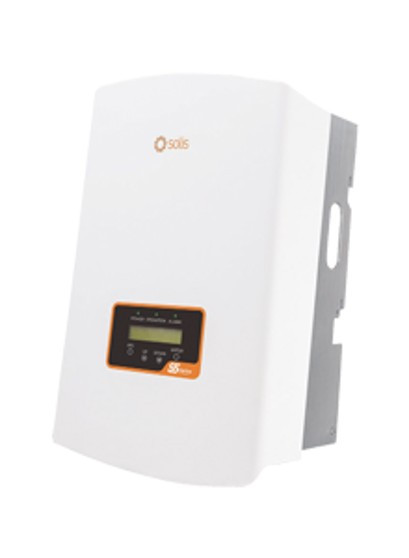

Solis 6kW S5 3 Phase Dual MPPT - DCClick to enlarge product image
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| Solis S5 5kW 3Phase Dual MPPT - DC | 06003SG18 | 5000.00 | 563 x 310 | £943.93 | £25.00 | Buy Now | |
| Solis S5 6kW 3 Phase Dual MPPT - DC | 06003SG19 | 6000.00 | 563 x 310 | £1057.61 | £25.00 | Buy Now | |
| Solis S5 8kW 3 Phase Dual MPPT - DC | 06003SG20 | 8000.00 | 563 x 310 | £1070.78 | £25.00 | Buy Now | |
| Solis S5 10kW 3 Phase Dual MPPT - DC | 06003SG10 | 10000.00 | 563 x 310 | £1111.97 | £25.00 | Buy Now | |
| Solis S5 12kW 3 Phase Dual MPPT - DC | 06003SG21 | 12000.00 | 538 x 310 | £1123.50 | £25.00 | Buy Now | |
| Solis 15kW S5 3 Phase Dual MPPT - DC | 06003SG22 | 15000.00 | 608 x 610 | £1312.94 | £25.00 | Buy Now | |
| Solis S5 20kW 3 Phase Dual MPPT - DC | 06003SG11 | 20000.00 | 563 x 310 | £1268.47 | £25.00 | Buy Now | |
| Solis S5 30kW 3 Phase Triple MPPT - DC | 06003SG12 | 30000.00 | 647 x 629 | £2255.76 | £99.00 | Out of stock | |
| Solis S5 40kW 3 Phase Quad MPPT - DC | 06003SG13 | 40000.00 | 647 x 629 | £1961.42 | £99.00 | Buy Now | |
| Solis S5 50kW 3 Phase 5x MPPT - DC | 06003SG14 | 50000.00 | 691 x 578 | £3088.80 | £99.00 | Out of stock |
Product Features:
- Max. efficiency of 98.3%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16A PV string input x 2
- Maximum AC output power of 6.6kW
- Max PV DC Power of 9kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
NRS-097-2-1 Certified
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.
Related Documents
- Solis Datasheet S5 GR3P 3_20 K
