JA Solar 530W N-type Bifacial Double Glass LB Traceable Black Frame MC4
JA Solar 530W N-type Bifacial Double Glass LB Traceable Black Frame MC4Click to enlarge product image
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| JA Solar 445W N-type Bifacial Double Glass Traceable LB All Black with MC4 | 06006HY01 | 445.00 | 1762 x 1134 | £118.70 | £99.00 | Buy Now | |
| JA Solar 450W N-type Double Glass Bifacial LB Traceable with MC4-EVO2 connectors (Black Frame) | 06006HY02 | 450.00 | 1762 x 1134 | £117.02 | £99.00 | Buy Now | |
| JA Solar 450W N-type Bifacial Double Glass LB All Black with MC4 | 06006HY03 | 450.00 | 1762 x 1134 | £121.25 | £99.00 | Buy Now | |
| JA Solar 455W N-type Double Glass Bifacial LB Traceable with MC4-EVO2A connectors (Black Frame) | 06006HY04 | 455.00 | 1762 x 1134 | £118.61 | £99.00 | Buy Now | |
| JA Solar 530W N-type Bifacial Double Glass LB Traceable Black Frame MC4 | 06006HY05 | 530.00 | 2063 x 1134 | £126.00 | £99.00 | Buy Now | |
| JA Solar 600W n-type Bifacial Double Glass Half-Cell MBB Traceable LB MC4 | 06006HY06 | 600.00 | 2333 x 1134 | £134.45 | £99.00 | Buy Now |

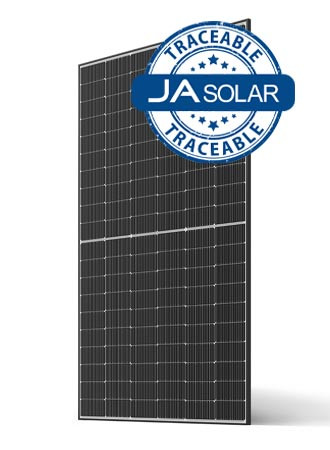

JA Solar 530W N-type Bifacial Double Glass LB Traceable Black Frame MC4
- Rating: 530W
- Efficiency: 22.7%
- Height: 2,063mm
- Width: 1,134mm
- Depth: 30mm
- Weight: 28.8kg
- Isc: 15.26 A
- Voc: 43.93 V
Powered by the latest MBB n-type solar cell and half-cell configuration, these modules have higher output power, lower LID, better weak illumination response and better temperature coefficient.
Features:
- Higher power generation - better LCOE
- N-type with very low LID
- Better weak illumination response
- Better temperature coefficient
Comes with a 12-year product warrant and 30-year linear power output warranty.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
Related Documents
- JAM60D42 505-530 LB Black Frame 15-year Warranty Global EN 20240620A
