Orion-Tr-DC-DC-converters-isolated 24 24 5amp
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| Orion DC to DC TR 24 48 2.5amp | 08004VT0025 | 120.00 | 100 x 113 | £79.06 | £6.25 | Buy Now | |
| Orion DC to DC charger 12 24 5 | 08004VT12245 | 120.00 | 113 x 100 | £79.06 | £6.25 | Buy Now | |
| Orion XS 12 12 50 | 08004VT0050 | 700.00 | 137.3 x 123.1 | £470.45 | £99.00 | Out of stock | |
| Orion-Tr-DC-DC-converters non isolated 24 12 10amp | 08004VT241210 | 120.00 | 73 x 94 | £42.72 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters non isolated 24 12 5amp | 08004VT24125 | 60.00 | 51 x 53 | £25.92 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters-isolated 12 12 30amp | 08004VT121230 | 360.00 | 130 x 186 | £303.26 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters-isolated 12 12 9 | 08004VT0012 | 110.00 | 100 x 113 | £79.03 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters-isolated 12 48 8 380 | 08004VT12488380 | 380.00 | 130 x 186 | £304.56 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters-isolated 24 12 20amp 240w | 08004VT241220 | 240.00 | 130 x 186 | £79.06 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters-isolated 24 12 9 | 08004VT24129 | 110.00 | 100 x 113 | £79.06 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters-isolated 24 24 17 400w | 08004VT242417 | 400.00 | 130 x 186 | £304.56 | £6.25 | Buy Now | |

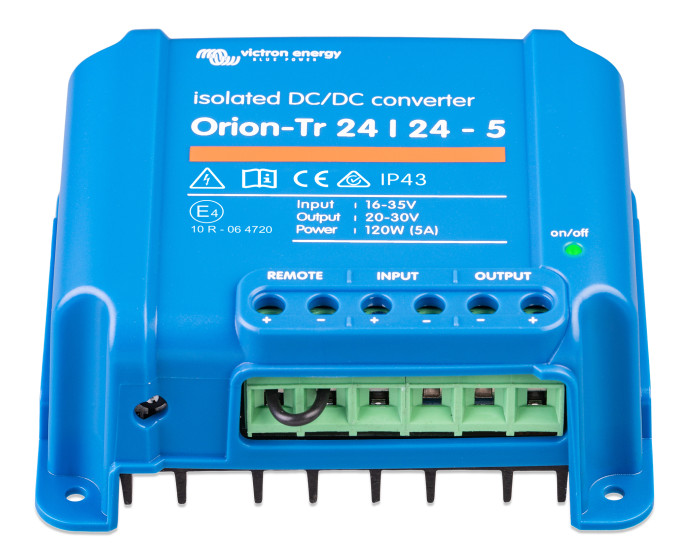

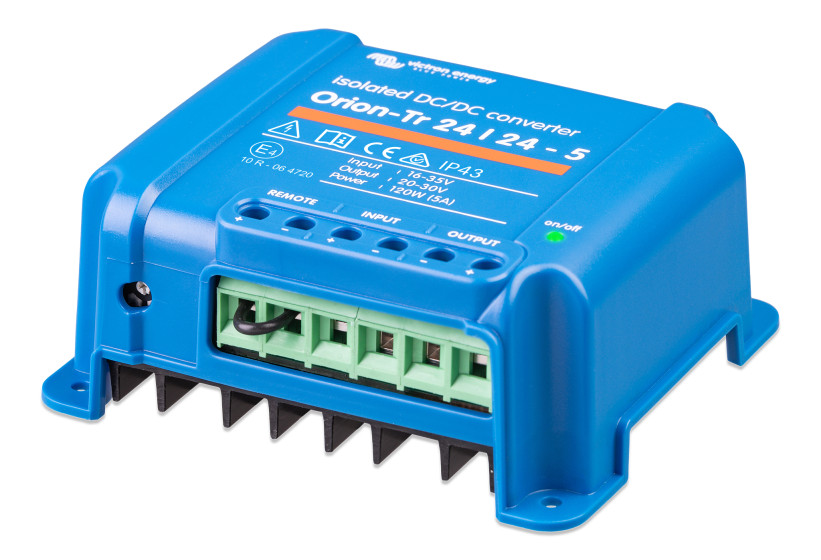

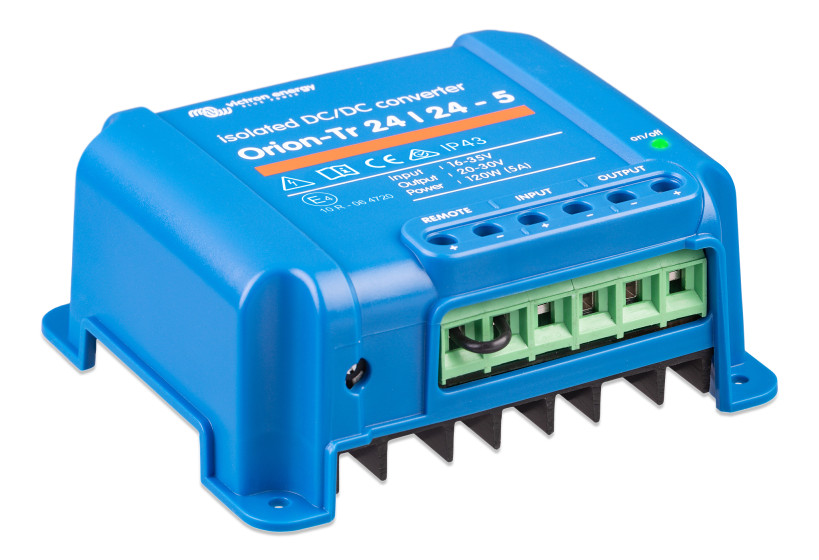

| Orion-Tr-DC-DC-converters-isolated 24 24 5amp | 08004VT0005 | 120.00 | 100 x 113 | £79.06 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters-isolated 48 12 20 | 08004VT481220 | 240.00 | 130 x 186 | £142.56 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters-isolated 48 48 2.5amp | 08004VT484825 | 120.00 | 100 x 113 | £79.06 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters-isolated 48 48 6amp 280w | 08004VT48486 | 280.00 | 130 x 186 | £142.56 | £6.25 | Buy Now | |
| Orion DC to DC TR 48 12 9 | 08004VT048129 | 110.00 | 100 x 113 | £79.06 | £6.25 | Buy Now | |
| Orion-Tr-DC-DC-converters-isolated 24 48 8.5amp 400w | 08004VT244885 | 400.00 | 130 x 186 | £251.42 | £6.25 | Buy Now |
Remote on/off terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The
remote on/off can be operated with a low power switch or by for example the engine run/stop switch
(see manual).
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12 V and 24 V input models only.
Adjustable output voltage
Not intended for battery charging.
Please consider using an Orion-Tr Smart for battery charging
