Kit Contents

Please phone if you require further information regarding the kit list.

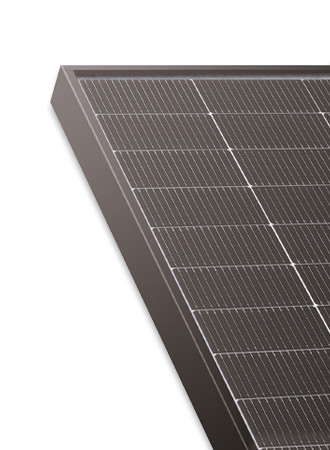

• 8 x JA Solar 455W N-type Double Glass Bifacial LB with MC4 connectors (Black Frame)
• 8 x IN ROOF - SINGLE END CLAMP V2023 - H16 - STEEL - BLACK W/ EPDM FOAM ATTACHED
• 12 x Mid Clamp Double V2023 EPDM - H16 %96 BLACK W/ EPDM FOAM ATTACHED
• 2 x GSE Clamp Wedges Twin Pack ( 2x Left / 2x Right )
• 12 x GSE Flashing Hook
• 80 x GSE In-Roof Screw 6.5x60 mm - EPDM - A2 - BLACK
• 3 x Pre-compressed seal roll (5.5m)
• 6 x Lateral Flashing - UNIVERSAL - 1290MM %96 BLACK NEW DPO
• 2 x GSE Rooflex Flexible Sealing Strip 330mm x 5m
• 16 x GSE Frame Portrait DPO - 1650/1135
• 2 x MC4-Evo2A 1500V DC Connector Double Pack 0316/0317 (Kit 2)
• 2 x 4mm2 single-core DC cable 50m - Black
• 2 x K&N Single String DC Switch Disconnector 25A 450V - 18A 800V
• 1 x Solis S6 3.6kW Dual MPPT - Single Phase with DC
• 1 x K&N Single Phase AC Switch Disconnector 25A
• 1 x Emlite 1-ph generation meter 100A (1000 pulse/kWh) incl. Cover
• 1 x Solis Data Logging Stick - WiFi Gen 3 - S3-WIFI-ST
• 1 x PV on Roof Hazard Labels Pack

Note:

• Panels may vary according to stock levels, but will be as close to 3.68kw as possible
• The above mounting system is based on a pantile roof. An alternative mounting system may be required for slate or flat roofs
• 3.68kw is currently the maximum sized system that can be installed by an MCS installer on a self certification basis. If a larger system is required, permission is needed by the DNO before installation
