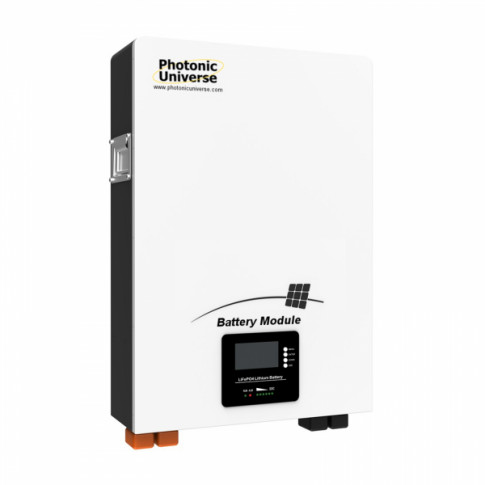

The Select Solar 100Ah 48V Lithium Iron Phosphate (LiFePO4) battery module designed for wall-mounted energy storage solutions. With its robust capacity and scalable design, it’s perfect for a wide range of applications, including renewable energy systems and backup power.

Equipped with an advanced Battery Management System (BMS), this battery actively regulates charging and discharging processes while monitoring voltage, current, and temperature. The BMS ensures optimal performance, longevity, and protection against overcharging, over-discharging, and extreme temperatures.

Key Benefits:

• High Scalability: Can be paralleled with up to 15 units, allowing for total energy storage expansion to meet large-scale demands.
• Extended Lifecycle: Provides up to 6,000 cycles at 95% depth of discharge, delivering years of reliable performance.
• Advanced Safety Features: Comprehensive BMS protection against:
  • Overcharging
  • Over-discharging
  • Over-current
  • High or low temperatures
  • Short circuits
• Wall-Mounted Design: Supplied with a mounting bracket for secure wall installation, saving space and offering easy access.
• Optimized Performance: Intelligent features like cell balancing, current limiting, and capacity retention ensure efficient operation.
• Soft Start Functionality: Reduces high current impact during inverter startups to extend system life.
• Smart Monitoring: Connect via Wi-Fi or Bluetooth to a mobile app for monitoring and configuration, including the selection of communication protocols (CAN and RS485) for compatibility with leading inverter brands.

Deep Cycle Applications

Ideal for a variety of demanding applications requiring robust and scalable energy storage, such as:

• Renewable Energy Systems: Supports solar and wind energy storage for residential, commercial, or industrial use.
• Backup Power: Provides dependable energy for UPS systems and critical equipment during outages.
• Telecommunications: Reliable power for telecom and networking infrastructure.
• Industrial and Commercial Use: Powers lighting systems, automation, and other energy-intensive operations.

Longevity and Maintenance

Designed to last for over 10 years, this battery minimizes maintenance needs while delivering cost-effective, long-term energy storage.

Battery specifications:

• Nominal voltage: 51.2V
• Nominal capacity: 100Ah
• Depth of discharge: 95%
• Life cycle: 6000 cycles @95% DoD, at 25°C
• Recommended charge voltage: 58.4V
• Maximum charge current: 100A
• Recommended charge current: 50A
• Maximum discharge current: 100A
• Recommended discharge current: 50A
• Operating charge temperature: from 0°C to +45°C
• Operating discharge temperature: from -10°C to +45°C
• Communication ports: RS485/RS232/CAN

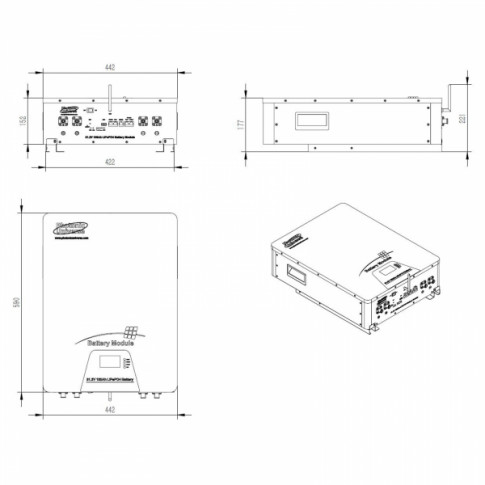

• Size: 590 x 442 x 177 mm
• Weight: 45kg
• Warranty: 5 Year Manufacturer Warranty
