DZ's amorphous silicon solar panels perform well under low light conditions, providing solid battery charging power for a variety of small 12 Volt applications, or for trickle charging large batteries. These all-inclusive kits are very simple to install and come with mounting screws and a range of 12V cables and charge regulator.

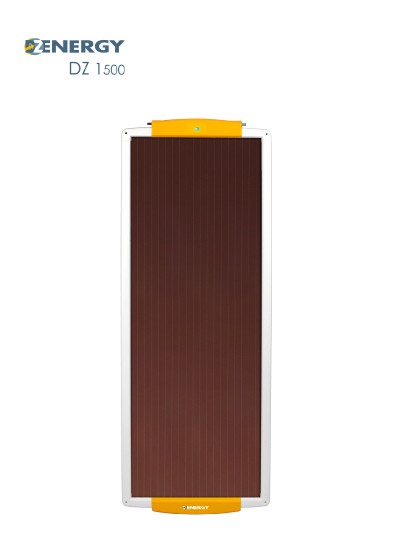

Solar panel details:

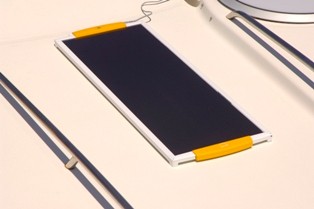

• White ABS plastic frame with integrated mounting feet won´t scratch your roof; mounting screws included.
• Frame is weatherproof/rust/shock/UV-resistant.
• Push-button indicator lets you know your panel is charging.
• Ideal starter kits for those making their first foray into solar power.
• Works even under low light conditions.
• Typical uses are cottages, trailers, boats, mobile homes, etc.
• Cabling includes 10 ft extension cable, panel-to-panel jumper cable, 12V cigarette lighter socket and 12V cigarette lighter plug.
• Built-in discharge protection (blocking diodes).
• Includes both crocodile clips and ring terminals to connect to battery.
• Maximum power 22.5Wp.
• Nominal current: 1500mA @ 15.5V in full sun.
• Suitable for all 12V batteries.
• Dimensions: 953 x 343 x 28 mm, 4.3kg.
• 10 year warranty on panel output; 2 year materials warranty.

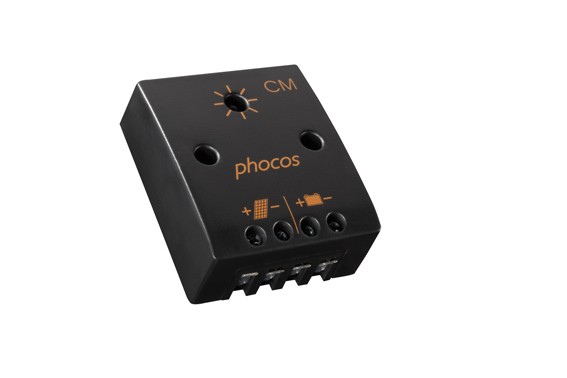

 Charge regulator details:

• Green status LED indicates battery charging
• Reverse leakage protection prevents power loss at night
• Overvoltage protection to stop your battery being overcharged
• Reverse polarity protection
• Boost voltage: 14.5V
• Float voltage: 13.7V
• Internal current use: <4mA
• Terminal Block - For sound and easy wire connections up to 16mm²
• Dimensions (mm): 60 x72 x 30
• Weight: 75g
