10W Solar Panel Kit for DIY Projects with Cables & Solar Controller

10W DIY Solar Power kit

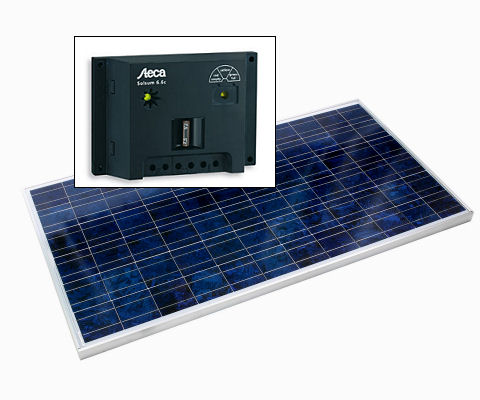

Click for larger image of 10W DIY Solar panel kit

Buy 10W DIY kit

Code:

05002SE01

Buy:

£119.99

Delivery (UK):

£6.50

Need help with this table?

DIY Solar panel kits
Name	Code	Power (W)	Voltage (V)	Current (A)	Price	UK Del'y
10W DIY kit	05002SE01	10.0	17.5	0.6	£119.99	£6.50
20W DIY kit	05002SE02	20.0	17.5	1.1	£179.99	£6.50
30W DIY kit	05002SE03	30.0	17.5	1.7	£229.99	£6.50
40W DIY kit	05002SE04	40.0	17.5	2.3	£284.99	£6.50
60W DIY kit	05002SE05	60.0	17.5	3.4	£369.99	£6.50
85W DIY kit	05002SE06	85.0	17.5	4.9	£479.99	£10.00
130W Solar kit	05002SE07	130.0	17.5	7.4	£629.99	£10.00

View all panels by wattage :: View all kits by wattage :: Click here for dimensions

DIY Solar panel kits
Name	Code	Power (W)	Voltage (V)	Current (A)	Length (mm)	Width (mm)	Depth (mm)	Weight (kg)	Price	UK Del'y
10W DIY kit	05002SE01	10.0	17.5	0.6	350.0	285.0	25.0	1.3	£119.99	£6.50
20W DIY kit	05002SE02	20.0	17.5	1.1	350.0	525.0	25.0	2.3	£179.99	£6.50
30W DIY kit	05002SE03	30.0	17.5	1.7	745.0	350.0	25.0	3.9	£229.99	£6.50
40W DIY kit	05002SE04	40.0	17.5	2.3	660.0	540.0	25.0	4.3	£284.99	£6.50
60W DIY kit	05002SE05	60.0	17.5	3.4	770.0	660.0	35.0	6.5	£369.99	£6.50
85W DIY kit	05002SE06	85.0	17.5	4.9	660.0	1010.0	35.0	8.4	£479.99	£10.00
130W Solar kit	05002SE07	130.0	17.5	7.4	1470.0	680.0	50.0	16.0	£629.99	£10.00

10W Yingli polycrystalline framed solar panel kits for DIY solar power. These 12V charging kits are suitable for permanent installation, and provide solar power for many different professional, domestic and leisure applications, including motorhomes, boats, and outbuildings. Kits include a polycrystalline solar panel, charge controller, cables and battery connectors.

Regulator details:

8A Stecca charge controller
Features two stage charging - boost and float charge using pulse width modulation (PWM).
Screw terminals for ease of installation.
Status LED indicates battery charging.
Reverse leakage protection prevents power loss at night.
130 x 88 x 39 mm

Cable details:

Approx 750mm two-core UV stable cables fitted to panel
In addition, comes with approx 3m UV stable two-core cable length.
Pack of connectors, fuse and instructions
Pair of 0.3m cables with ring connectors to fit between regulator and battery.

Solar panel details:

Heavy duty anodised aluminium frame provides high wind resistance and convenient mounting access.
Installation holes for standard bracket systems are provided.
Screwdriver required for installation; full instructions included.
Panel rated 10W, 570mA @ 17.5V
Dimensions: 350 x 285 x 25mm, 1.3kg
25 year panel output warranty.
