Yingli Polycrystalline Solar Panels

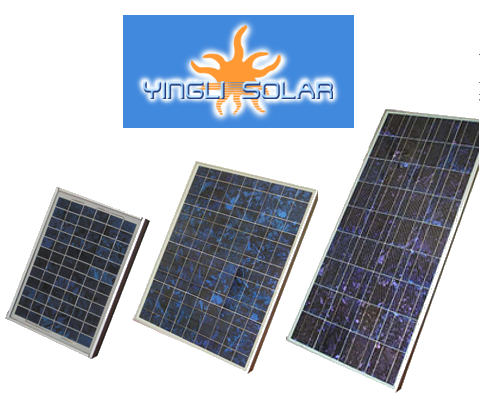

Click for larger image of Yingli Solar Panels

Yingli Solar Panels
Name	Code	Power (W)	Voltage (V)	Current (A)	Price	UK Del'y
20W Yingli panel	06001JP02	20.0	17.5	1.1	£150.00	£6.50
30W Yingli panel	06001JP03	30.0	17.5	1.7	£195.00	£6.50
40W Yingli panel	06001JP04	40.0	17.5	2.5	£275.00	£6.50
60W Yingli panel	06001JP05	60.0	17.5	3.4	£385.00	£10.00
80W Yingli panel	06001JP06	80.0	17.5	4.6	£464.89	£10.00
10W Yingli panel	06001JP09	10.0	17.0	0.6	£75.00	£6.50

View all panels by wattage :: View all kits by wattage :: Click here for dimensions

Yingli Solar Panels
Name	Code	Power (W)	Voltage (V)	Current (A)	Length (mm)	Width (mm)	Depth (mm)	Weight (kg)	Price	UK Del'y
20W Yingli panel	06001JP02	20.0	17.5	1.1	291.0	610.0	25.0	2.3	£150.00	£6.50
30W Yingli panel	06001JP03	30.0	17.5	1.7	745.0	350.0	25.0	3.9	£195.00	£6.50
40W Yingli panel	06001JP04	40.0	17.5	2.5	610.0	541.0	25.0	4.1	£275.00	£6.50
60W Yingli panel	06001JP05	60.0	17.5	3.4	770.0	660.0	35.0	7.0	£385.00	£10.00
80W Yingli panel	06001JP06	80.0	17.5	4.6	1010.0	660.0	35.0	8.2	£464.89	£10.00
10W Yingli panel	06001JP09	10.0	17.0	0.6	290.0	329.0	25.0	1.8	£75.00	£6.50

Yingli's polycrystalline solar panels offer superb value for money. These 12V panels are suitable for a range of professional and DIY applications.
Heavy duty anodised aluminium frame provides high wind resistance and convenient mounting access. Cells are laminated between high transmissivity, low iron, 3mm tempered glass and a sheet of TPT material and finally two sheets of EVA to prevent moisture entering the module.
Installation holes for standard bracket systems are located on the frame.
Bypass diodes on panels 30W and above to improve shadow tolerance.
Waterproof versatile junction box provides flexibility of connections.
Modules are manufactured in accordance with IEC 61215.
5 years limited output guarantee.
Require blocking diodes if not used with a regulator.
