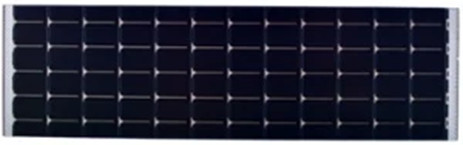

0.77W Powerfilm MPT15-75 (50mA @ 15.4V) mini solar panel

MPT15-75Click to enlarge product image
MPT15-75

PowerFilm's Wireless Electronics Series Modules provide limited power for wireless electronics in both portable and remote electronic applications.

The thin profile of the mini15.4V solar panel enables it to be easily integrated with devices for direct power or solar-recharging.


Features

  • Can be wired in series or parallel to step up voltage or current (please read the instructions).
  • lightweigtht, Paper thin & Durable
  • Simple to connect - just solder or crimp to the copper tape.



Please note, these modules do not have a UV-stabilized surface.



Electrical Specifications:

Full Sun

  • Power: 770mW

  • Operating Voltage: 15.4V

  • Current: 50mA

1/4 Sun

  • Power: 173mW

  • Operating Voltage: 15.4V

  • Current: 11.3mA

All Levels

  • Average Voc: 19.0V

  • Maximum Voc: 22.2V

  • Isc: 64mA

Physical Specifications:

  • Dimensions: 253.0 x 73.0 (mm) / 9.96 x 2.87 (in)

  • Weight: 0.50oz / 14.17g

  • Thickness: 0.61mm



  • *
  • *
  • *
  • *
