Victron MultiPlus 1200VA - 48V, 13A

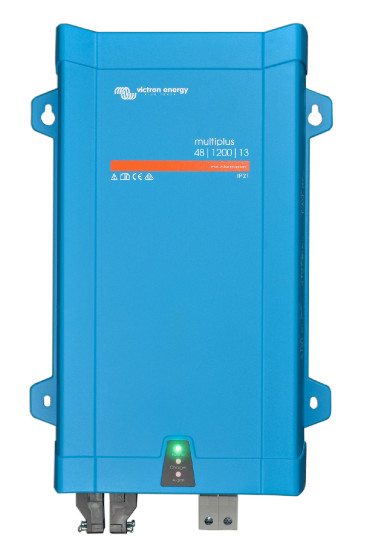

MultiPlus 48V 1200VA (top)Click to enlarge product image
MultiPlus 48V 1200VA (top)
  • £659.22 inc. VAT

  • 08006VT36
  • 5 in stock
  • No reviews yet
  • More Details

  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  Victron MultiPlus 500VA - 12V, 20A 08006VT27 430.00 311 x 182 £381.01 £6.25 Buy Now
  Victron MultiPlus 500VA - 24V, 10A 08006VT28 430.00 311 x 182 £381.01 £6.25 Buy Now
  Victron MultiPlus 500VA - 48V, 6A 08006VT29 430.00 311 x 182 £381.01 £6.25 Buy Now
  Victron MultiPlus 800VA - 12V, 35A 08006VT30 700.00 360 x 240 £472.74 £15.00 Buy Now
  Victron MultiPlus 800VA - 24V, 16A 08006VT31 700.00 360 x 240 £472.74 £15.00 Buy Now
  Victron MultiPlus 800VA - 48V, 9A 08006VT32 700.00 360 x 240 £472.74 £15.00 Buy Now
  Victron MultiPlus 1200VA - 12V, 50A 08006VT33 1000.00 406 x 250 £659.22 £15.00 Buy Now
  Victron MultiPlus 1200VA - 24V, 25A 08006VT34 1000.00 406 x 250 £659.22 £15.00 Buy Now
  Victron MultiPlus 1200VA - 48V, 13A 08006VT36 1000.00 406 x 250 £659.22 £15.00 Buy Now
  Victron MultiPlus C 800VA - 12V, 35A 08006VT37 700.00 375 x 214 £649.14 £15.00 Buy Now
  Victron MultiPlus C 800VA - 24V, 16A 08006VT38 700.00 375 x 214 £649.14 £15.00 Buy Now
  Victron MultiPlus C 1200VA - 12V, 50A 08006VT39 1000.00 375 x 214 £812.44 £15.00 Buy Now
  Victron MultiPlus C 1200VA - 24V, 25A 08006VT40 1000.00 375 x 214 £804.04 £15.00 Buy Now
  Victron MultiPlus C 1600VA - 12V, 70A 08006VT41 1300.00 375 x 214 £830.58 £15.00 Buy Now
  Victron MultiPlus C 1600VA - 24V, 40A 08006VT42 1300.00 375 x 214 £830.58 £15.00 Buy Now
  Victron MultiPlus C 2000VA - 12V, 80A 08006VT43 1600.00 520 x 255 £1038.23 £15.00 Buy Now
  Victron MultiPlus C 2000VA - 24V, 50A 08006VT44 1600.00 520 x 255 £1038.23 £15.00 Buy Now
  Victron MultiPlus 3000VA - 12V, 120A, 16A Transfer 08006VT45 2400.00 362 x 258 £1282.16 £15.00 Buy Now
  Victron MultiPlus 3000VA - 12V, 120A, 50A Transfer 08006VT46 2400.00 362 x 258 £1282.16 £15.00 Buy Now
  Victron MultiPlus 3000VA - 24V, 70A, 16A Transfer 08006VT47 2400.00 362 x 258 £1282.16 £15.00 Buy Now
  Victron MultiPlus 3000VA - 24V, 70A, 50A Transfer 08006VT48 2400.00 362 x 258 £1384.98 £15.00 Buy Now
  Victron MultiPlus 3000VA - 48V, 35A, 16A Transfer 08006VT49 2400.00 362 x 258 £1039.24 £15.00 Buy Now
  Victron MultiPlus 3000VA - 48V, 35A, 50A Transfer 08006VT50 2400.00 362 x 258 £1065.44 £15.00 Buy Now
  Victron MultiPlus 5000VA - 24V, 120A 08006VT51 4000.00 444 x 328 £2051.27 £99.00 Buy Now
  Victron MultiPlus 5000VA - 48V, 70A 08006VT52 4000.00 444 x 328 £1754.92 £99.00 Buy Now

The MultiPlus 1200VA is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

Features

  • Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
  • High start-up power Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
  • Search Mode When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.
  • Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
  • Remote on / off / charger on Remote operation can be implemented by connecting a switch to the three pole connector
  • *
  • *
  • *
  • *
