Solis S6 3.6kW Dual MPPT - Single Phase with DC

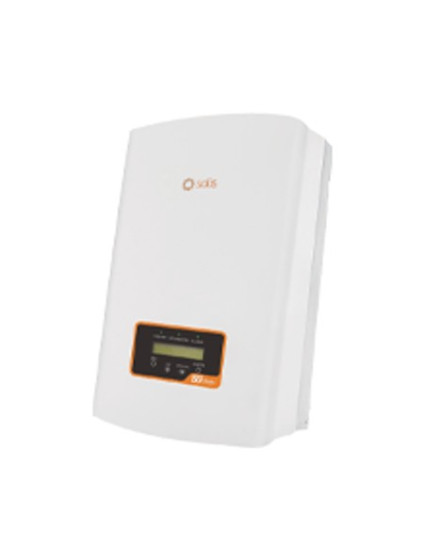

S6 3.6kW Dual MPPT - Single Phase with DCClick to enlarge product image
S6 3.6kW Dual MPPT - Single Phase with DC

  • £591.55 inc. VAT

  • 06003SG17
  • 10 in stock
  • No reviews yet

  • More Details

  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  Solis S6 0.7kW Mini Single Tracker with DC isolator 06003SG01 700.00 373 x 310 £276.76 £15.00 Buy Now
  Solis S6 Mini 1kW 1MPPT 1PH Inverter - with DC isolator 06003SG15 1000.00 373 x 310 £280.06 £15.00 Buy Now
  Solis S6 Mini 1.5kW 1MPPT 1PH Inverter - with DC isolator 06003SG02 1500.00 373 x 310 £346.32 £15.00 Buy Now
  Solis S6 Mini 2kW 1MPPT 1Ph Inverter - with DC isolator 06003SG03 2000.00 373 x 310 £355.68 £15.00 Buy Now
  Solis S6 Mini 2.5kW 1MPPT 1PH Inverter - with DC isolator 06003SG16 2500.00 373 x 310 £337.70 £15.00 Buy Now
  Solis S6 Mini 3kW 1MPPT 1Ph Inverter - with DC isolator 06003SG04 3000.00 373 x 310 £462.38 £15.00 Buy Now
  Solis S6 3.6kW Dual MPPT - Single Phase with DC 06003SG17 3600.00 543 x 310 £591.55 £25.00 Buy Now
  Solis S6 4kW Dual MPPT - Single Phase With DC 06003SG05 4000.00 543 x 310 £640.22 £25.00 Buy Now
  Solis S6 5kW Dual MPPT - Single Phase with DC 06003SG06 5000.00 543 x 310 £675.79 £25.00 Buy Now
  Solis S6 6kW Dual MPPT - Single Phase with DC 06003SG08 6000.00 543 x 310 £657.30 £25.00 Buy Now

  • Rating: 3,600W
  • Phases: 1

Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.

Product Features

  • Max PV Power of 5.4kW
  • Maximum string input current 14A
  • DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
  • Super high frequency switching technology with Max. Efficiency over 97.3% and      European efficiency over 96.6%
  • Wide input voltage range - Ultra low start-up voltage of 120V and max PV input voltage of 600V
  • Dual MPPT design with precise MPPT algorithm
  • Export Limitation built in - Requires CT clamp (sold separately)
  • Integrated AFCI (DC arc-fault circuit protection)
  • Integrated DC switch for safe PV maintenance
  • Rated IP66
  • 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)

NRS-097-2-1 Certified, pending CoCT approval.



  • *
  • *
  • *
  • *
