Solis S5 15kW 3 Phase Dual MPPT - DC

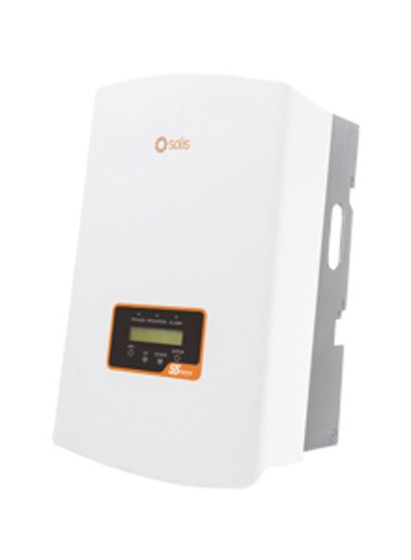

Solis 15kW S5 3 Phase Dual MPPT - DCClick to enlarge product image
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| Solis S5 5kW 3Phase Dual MPPT - DC | 06003SG18 | 5000.00 | 563 x 310 | £1132.73 | £25.00 | Buy Now | |
| Solis S5 6kW 3 Phase Dual MPPT - DC | 06003SG19 | 6000.00 | 563 x 310 | £1269.13 | £25.00 | Buy Now | |
| Solis S5 8kW 3 Phase Dual MPPT - DC | 06003SG20 | 8000.00 | 563 x 310 | £1284.94 | £25.00 | Buy Now | |
| Solis S5 10kW 3 Phase Dual MPPT - DC | 06003SG10 | 10000.00 | 563 x 310 | £1334.36 | £25.00 | Buy Now | |
| Solis S5 12kW 3 Phase Dual MPPT - DC | 06003SG21 | 12000.00 | 563 x 310 | £1348.20 | £25.00 | Buy Now | |
| Solis S5 15kW 3 Phase Dual MPPT - DC | 06003SG22 | 15000.00 | 563 x 310 | £1575.54 | £25.00 | Buy Now | |
| Solis S5 20kW 3 Phase Dual MPPT - DC | 06003SG11 | 20000.00 | 563 x 310 | £1522.16 | £25.00 | Buy Now | |
| Solis S5 30kW 3 Phase Triple MPPT - DC | 06003SG12 | 30000.00 | 647 x 629 | £2706.91 | £99.00 | Out of stock | |
| Solis S5 40kW 3 Phase Quad MPPT - DC | 06003SG13 | 40000.00 | 647 x 629 | £2353.72 | £99.00 | Buy Now | |
| Solis S5 50kW 3 Phase 5x MPPT - DC | 06003SG14 | 50000.00 | 691 x 578 | £3706.56 | £99.00 | Out of stock |
Product Features:
- Max. efficiency of 98.6%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16A PV string input x 4
- Maximum AC output power of 16.5kW
- Max PV DC Power of 22.5kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty
NRS-097-2-1 Certified, not CoCT Approved.
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.
Related Documents
- Solis Datasheet S5 GR3P 3_20 K
