3.68kw Canadian Monocrystalline Solar panel Kit

360w canadian panel
360w canadian panel
  • £4358.00 inc. VAT

  • 06008CJ04
  • 10 in stock
  • No reviews yet
  • More Details

  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  1kw Canadian Monocrystalline Solar panel Kit 06008CJ01 1000.00 1686 x 1016 £1816.32 £99.00 Buy Now
  2kw Canadian Monocrystalline Solar Panel Kit 06008CJ02 2000.00 1686 x 1016 £3072.12 £99.00 Buy Now
  3kw Canadian Monocrystalline Solar panel Kit 06008CJ03 3000.00 1686 x 1016 £4275.37 £99.00 Buy Now
  3.68kw Canadian Monocrystalline Solar panel Kit 06008CJ04 3680.00 1686 x 1016 £4358.00 £99.00 Buy Now

Kit Contents

Please phone if you require further information regarding the kit list.

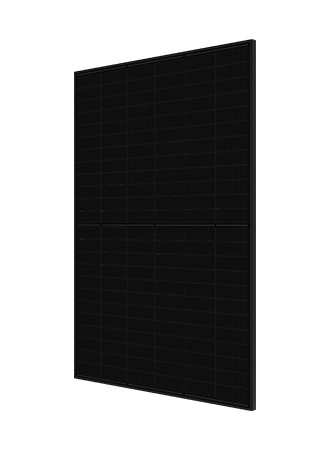

  • 10 x 360w Canadian Monocrystalline Solar panel
  • 1 x Solis 3.6kW Mini 4G Single Tracker with DC Isolator
  • 8 x End Clamp+ 30 - 50mm Black
  • 16 x Middle Clamp+ 31-51mm Black
  • 4 x Wood screw pan head 6 x 80 (Bag of 21)
  • 28 x Roof hook UK Pantile (without wood screw)
  • 8 x VarioSole End Cap RIGHT/LEFT 50mm grey (1 pair )
  • 4 x VarioSole+ Rail connector for rail 41 x 35 mm
  • 2 x VarioSole+ mounting rail 41 x 35 x 3300mm
  • 4 x VarioSole+ Mounting rail 41 x 35 x 4400mm
  • 1 x MC4 Connector Twin Pack
  • 1 x 4mm2 single-core DC cable 25m - Black
  • 1 x K&N Single Phase AC Switch Disconnector 25A
  • 1 x K&N Single String DC Switch Disconnector 25A 450V - 11A 920V
  • 1 x Emlite 1-ph generation meter 100A (1000 pulse/kWh) incl. Cover
  • 1 x PV on Roof Hazard Labels Pack

Note:

  • Panels may vary according to stock levels, but will be as close to 3.68kw as possible
  • The above mounting system is based on a pantile roof. An alternative mounting system may be required for slate or flat roofs.
  • 3.68kw is currently the maximum sized system that can be installed by an MCS installer on a self certification basis. If a larger system is required, permission is needed by the DNO before installation
  • *
  • *
  • *
  • *
