Victron Phoenix 800VA - 24V with VE Direct

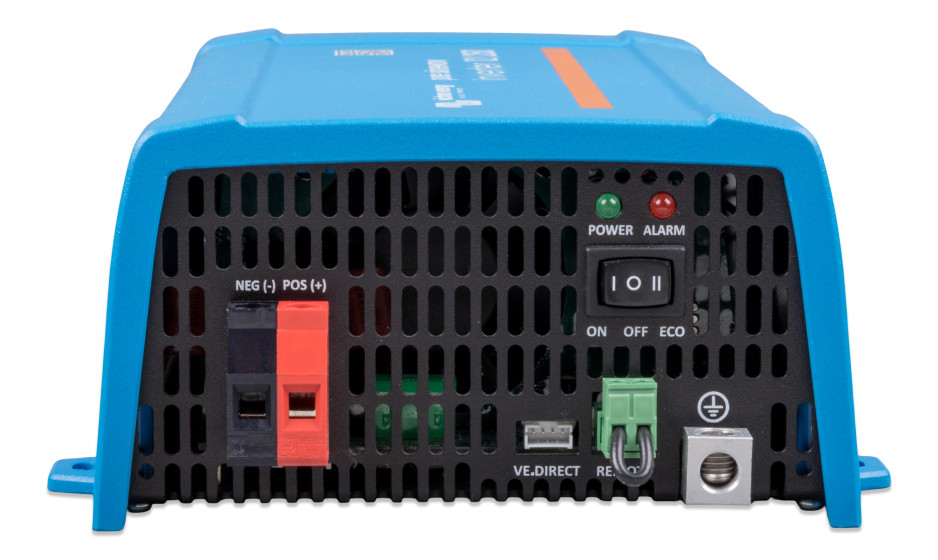

Phoenix inverter 24V 800VA VE.Direct (top)Click to enlarge product image
Victron Pheonix inverters for converting battery voltage (12V, 24V, 48V DC) to mains voltage (240V AC) to run appliances.
Now with a VE.Direct port these inveters can be connected to:
- A computer (VE.Direct to USB interface cable needed)
- Apple and Android smartphones, tablets, macbooks and other devices (VE.Direct Bluetooth Smart dongle needed)
Configurable options:
- Low voltage alarm trip and reset levels
- Low voltage cut-off and restart levels
- Output voltage 210 - 245V
- Frequency 50Hz or 60Hz
- ECO mode on/off and ECO mode sense level
Monitoring:
- In and output voltage and current alarms
Main Features
- Short circuit proof and protection against overheating from overload or ambient temperature
- ECO Mode, when in ECO mode the inverter will switch into standby mode when the load is below a minimum load of 15 watts. Once in standy mode the inverter will switch on every few seconds to search for a load above 15 watts, if a load is found then the inverter will stay switched on until the load is switched off
- Remote on/off, a remote switch can be connected to a two pole connector or betwwen the battery plus and the left hand contact of the 2 pole connector
- The inverter can be diagnosed for problems with the LEDs, please see manual for more information
- The standard output socket is a UK socket, however there are other sockets available: Schuko, AU/NZ, IEC-320 and Nema 5-15R
- 5 years warranty
